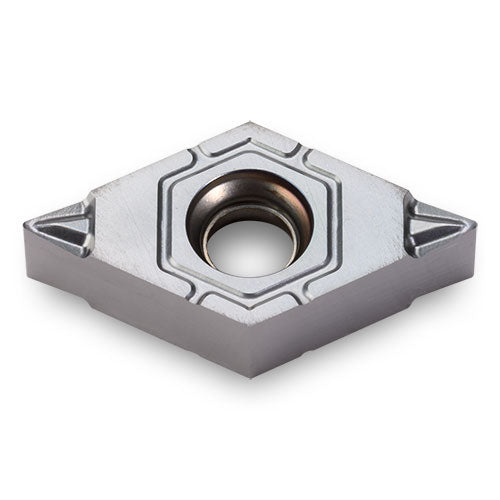

DNGX2.220.5M-SM-F TT9020
Item #: IC066335247
Brand: Ingersoll
Model #: 6335247
| Product Specifications | |
|---|---|
| Insert Style | DNGX |
| Depth of Cut Maximum (APMX) | 0.047″ |
| Corner Radius (RE) | 0.008″ |
| Min. Turning Feed (ft(min)) | 0.0008″ |
| Insert Size | 080302 |
| Max. Turning Feed (ft(max)) | 0.005″ |
| Insert Thickness (S) | 1/8″ |
| Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 0.276″ |
| Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 55 Degrees |
| Measurement Type | Inch |
| Min D.O.C. | 0.008″ |
| Body Material | Carbide |
