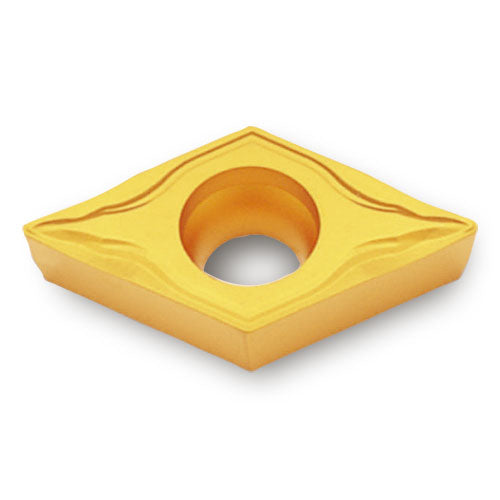

DCMT32.52FG TT9225
Item #: IC065520285
Brand: Ingersoll
Model #: 5520285
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Fixing Hole Diameter (D1) | 0.173″ |
| Corner Radius (RE) | 0.031″ |
| Min D.O.C. | 0.024″ |
| Insert Size | 32.52 |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Cutting Edge Length (L) | 0.425″ |
| Min. Turning Feed (ft(min)) | 0.004″ |
| Insert Thickness (S) | 0.156″ |
| Max. Turning Feed (ft(max)) | 0.01″ |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Series/List # | CCMT 32.52-FG |
| Grade | TT9225 |
| Body Material | Carbide |
