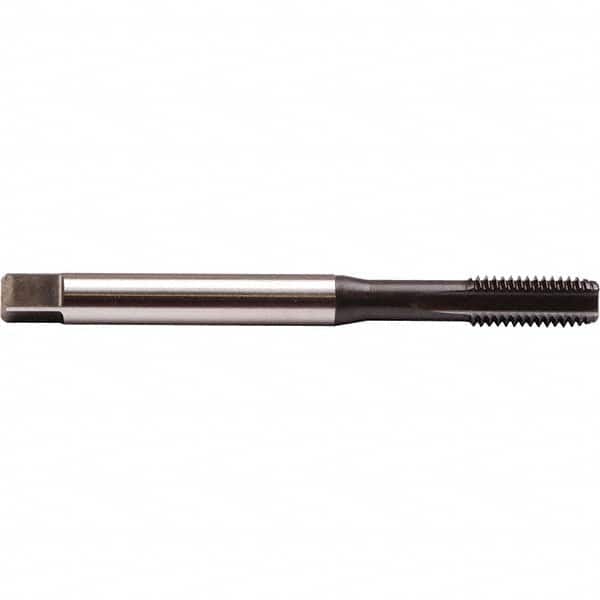

Emuge - M3x0.50 Metric D3 0-Flute Bright Finish Solid Carbide Straight Flute Machine Tap
Item #: 96373303
Brand: Emuge
Model #: B1950901.0030
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M3x0.50 |
| Class of Fit | 6HX |
| Thread Limit | D3 |
| Number of Flutes | 0 |
| Chamfer | Modified Bottoming |
| Material | Solid Carbide |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Thread Standard | Metric |
| Overall Length (mm) | 56.00 |
| Oversize | No |
| Thread Length (mm) | 6.00 |
| Tapping Depth (mm) | 6 |
| Shank Diameter (mm) | 3.50 |
| Square Size (mm) | 2.70 |
| Material Application | Hardened Steel |
