Brand: Widia / Part #: 2968592

Brand: Widia / Part #: 2968592


Item #: 99731069
Brand: Widia
Model #: 2968592

Product Specifications

Thread Type External
Hand of Holder Right Hand
Shank Width/Diameter (Decimal Inch) 1.0000
Compatible Insert Size Code 3
Shank Width/Diameter (Inch) 1
Toolholder Style LSSR
Insert Compatibility LT16ER
Coolant Entry Style Code 0-Without Coolant
Insert Holding Method Clamp
Shank Height (Decimal Inch) 1.0000
Shank Length (Inch) 5
Shank Length (Decimal Inch) 5.0000
Overall Length (Inch) 6
Overall Length (Decimal Inch) 6.0000
Series LT
Multi-use Tool No

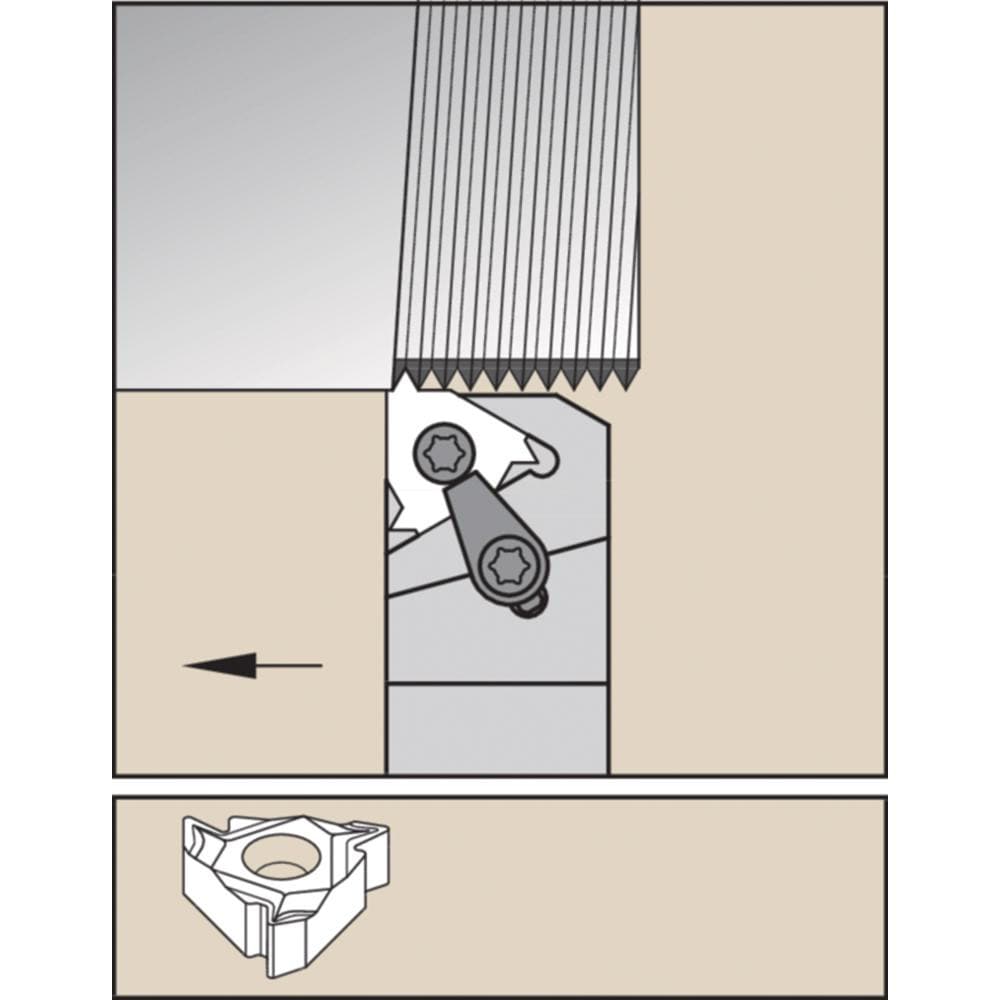

Cutting Tool Application Threading
Head Length (Decimal Inch) 1.0000
Maximum Depth of Cut (Decimal Inch) 0.1875
Adjustable Overhang Yes
Back of Bar to Cutting Edge (Inch) 1-1/4
Back of Bar to Cutting Edge (Decimal Inch) 1.2500
Center to Cutting Edge (Decimal Inch) 0.5000
Insert Inscribed Circle (Decimal Inch) 0.3750
Insert Inscribed Circle (Inch) 3/8
Insert Inscribed Circle (mm) 9.53
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Toolholder Material Steel
Manufacturers Catalog Number LSSR163D
Style LT
Coolant Through No
$130.80
