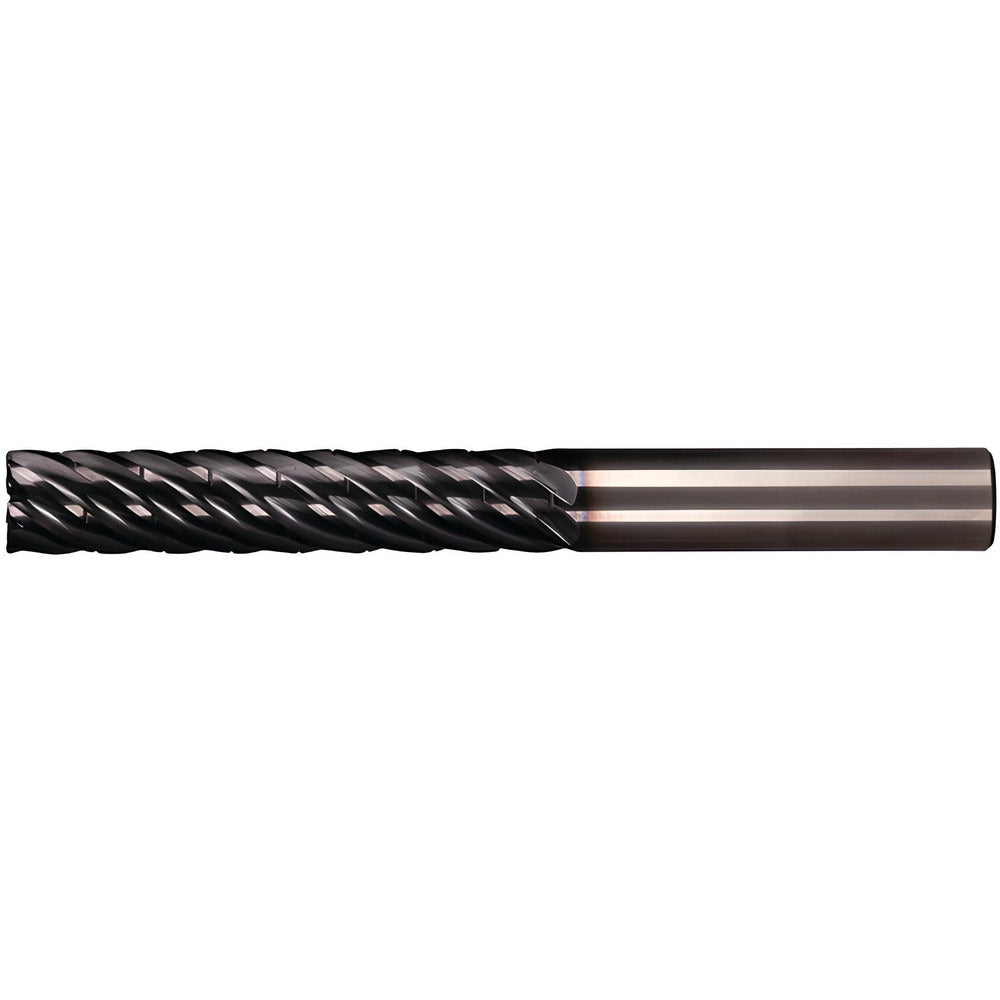

Brand: Widia / Part #: 7073715
Item #: 87992277
Brand: Widia
Model #: 7073715
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Corner Radius (mm) | 0.30 |
| Coating/Finish | AlTiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 7 |
| Single Or Double End | Single End |
| Overall Length (mm) | 100.0000 |
| Length of Cut (mm) | 52.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Flute Direction | Right Hand |
| Helix Angle | 49 |
| Chipbreaker | No |
| Flute Type | Helical Flute |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | Yes |
| Shank Diameter (mm) | 10.0000 |
| Minimum Helix Angle | 48 |
| Maximum Helix Angle | 50 |
| Series | Varimill Chipsplitter |
| Helix Style | Variable |
| Manufacturers Catalog Number | 772TM10015RXT WS15PE |
