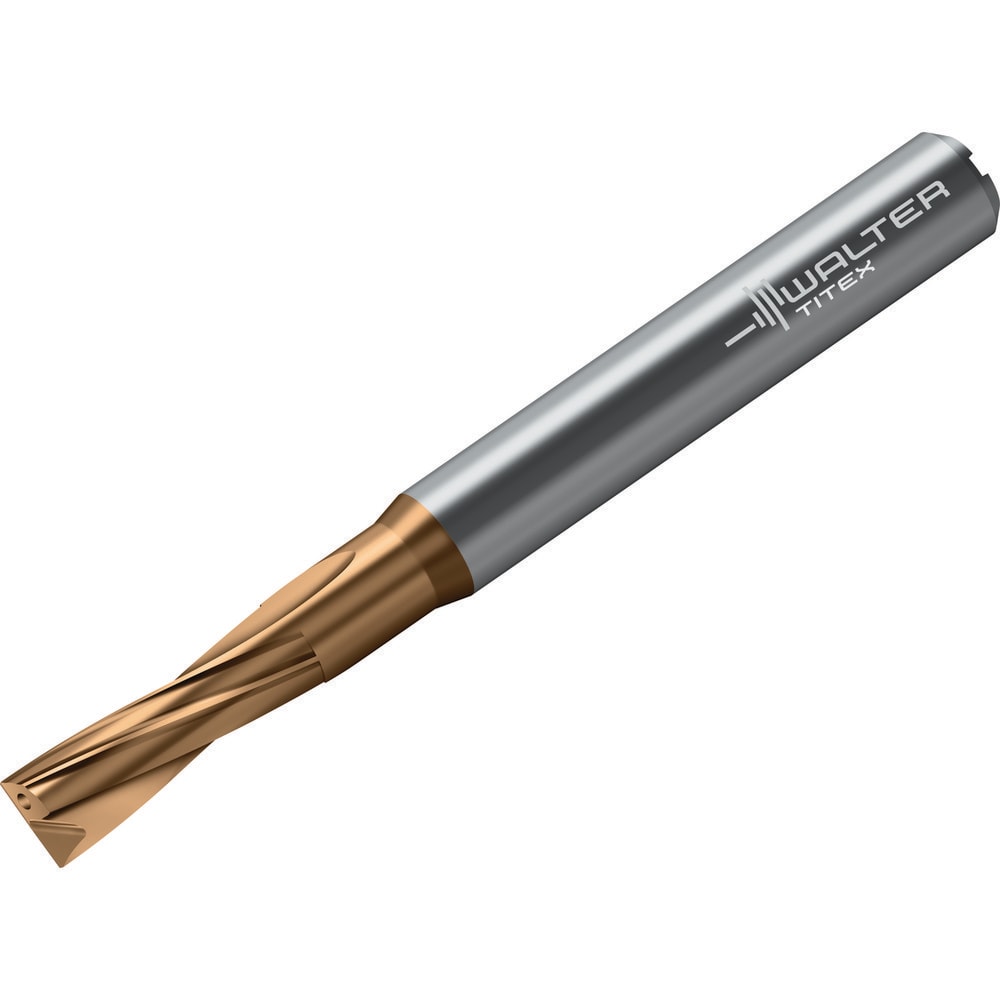

Brand: Walter-Titex / Part #: 8221626
Item #: 70027750
Brand: Walter-Titex
Model #: 8221626
Product Specifications
| Drill Bit Size (Inch) | 7/32 |
| Drill Bit Size (Decimal Inch) | 0.2187 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiSiAlCrN/AlTiN |
| Drill Point Angle | 180 |
| Spiral Type | Regular Spiral |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Whistle Notch |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (Decimal Inch) | 2.5984 |
| Series | DC118-02-A1 |
| Maximum Drilling Depth (Decimal Inch) | 0.5669 |
| Shank Length (Decimal Inch) | 1.6535 |
| Drill Point Length (Decimal Inch) | 0.0000 |
| Flute By Diameter Ratio | 2xD |
| Drill Bit Diameter Tolerance | p7 |
| Flute Length (Decimal Inch) | 0.8268 |
| Drill Bit Grade | WJ30ET |
| Material Grade | Solid Carbide |
