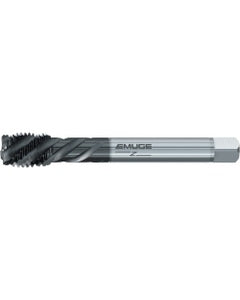

5/8″-11 UNC × 4.331″ OAL, HSSE, GLT-1, 3B Tolerance Class, 2P-3P Chamfer, Left Hand, Semi-Bottoming, Spiral Flute Tap
Item #: ER4550C4605015
Brand: EMUGE-FRANKEN
Model #: CU50C460.5015
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/8″ |
| Standard | | DIN | ANSI | |
| Threads per Inch (TPI) | 11 |
| Tool Type | Enorm Z |
| Thread Standard | | UNC | |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 4.331″ |
| Coating | GLT-1 |
| Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Style | Semi-Bottoming |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | HSSE |
| Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | | 3B | |
| Application | Blind Hole |
