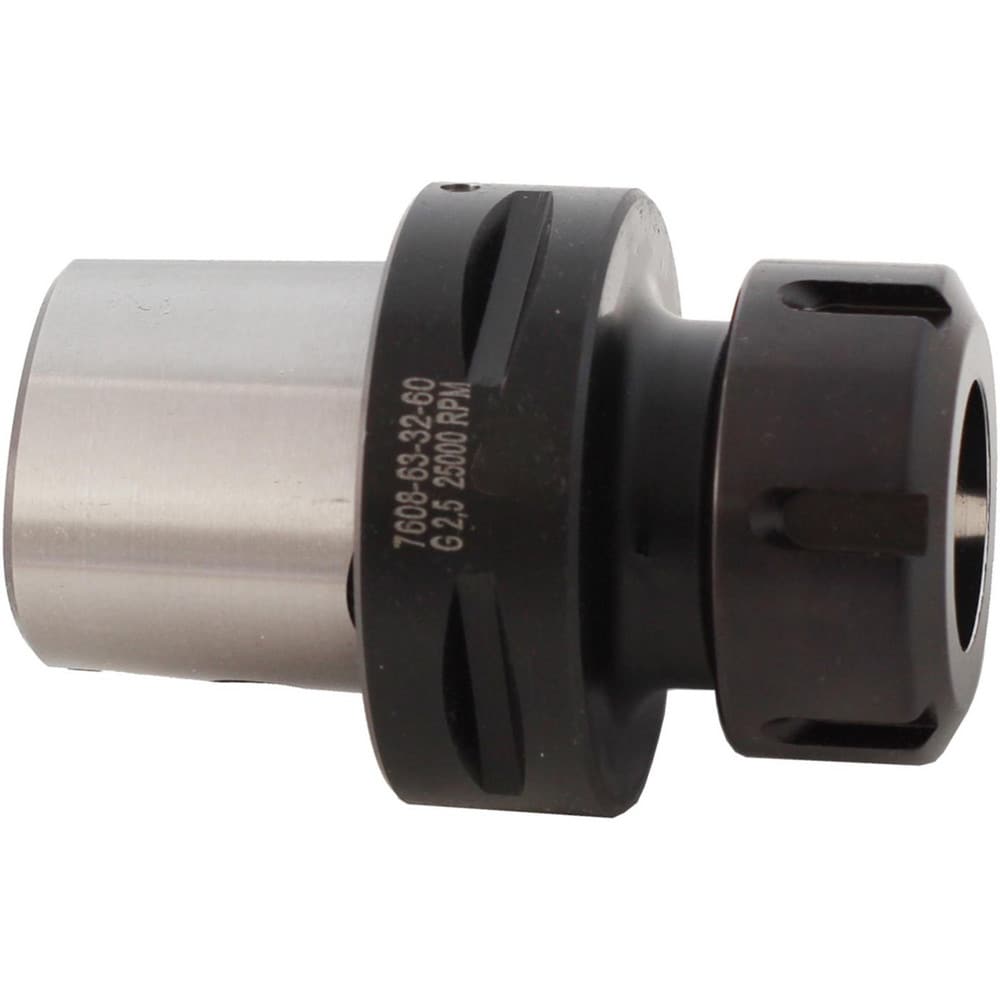

Brand: Bison / Part #: 7-146-532

Brand: Bison / Part #: 7-146-532


Item #: 90897752
Brand: Bison
Model #: 7-146-532

Product Specifications

Collet System ER
Collet Series ER32
Shank Type Hollow Taper
Taper Size C5
Modular Connection Size C5
Projection (Decimal Inch) 2.2400
Projection (mm) 57.000
Through Coolant Yes
Minimum Collet Capacity (mm) 2.00
Minimum Collet Capacity (Decimal Inch) 0.0800
Maximum Collet Capacity (mm) 20.00
Maximum Collet Capacity (Decimal Inch) 0.7900
Overall Length (mm) 87.0000
Overall Length (Decimal Inch) 3.4200
Actuator Type Wrench
Nose Diameter (Decimal Inch - 4 Decimals) 1.9700
Nose Diameter (Mm) ( - 2 Decimals) 50.00
Maximum RPM 25000.000
TIR (mm) 0.0100
TIR (Decimal Inch) 0.000400
Material Steel
Coolant Type Through-Spindle
Collet Nut Diameter (mm) 50.00
Collet Nut Diameter (Decimal Inch) 1.9700
Balanced To Rpm 25000
Thread Size (mm) M40x1.5
$363.49
