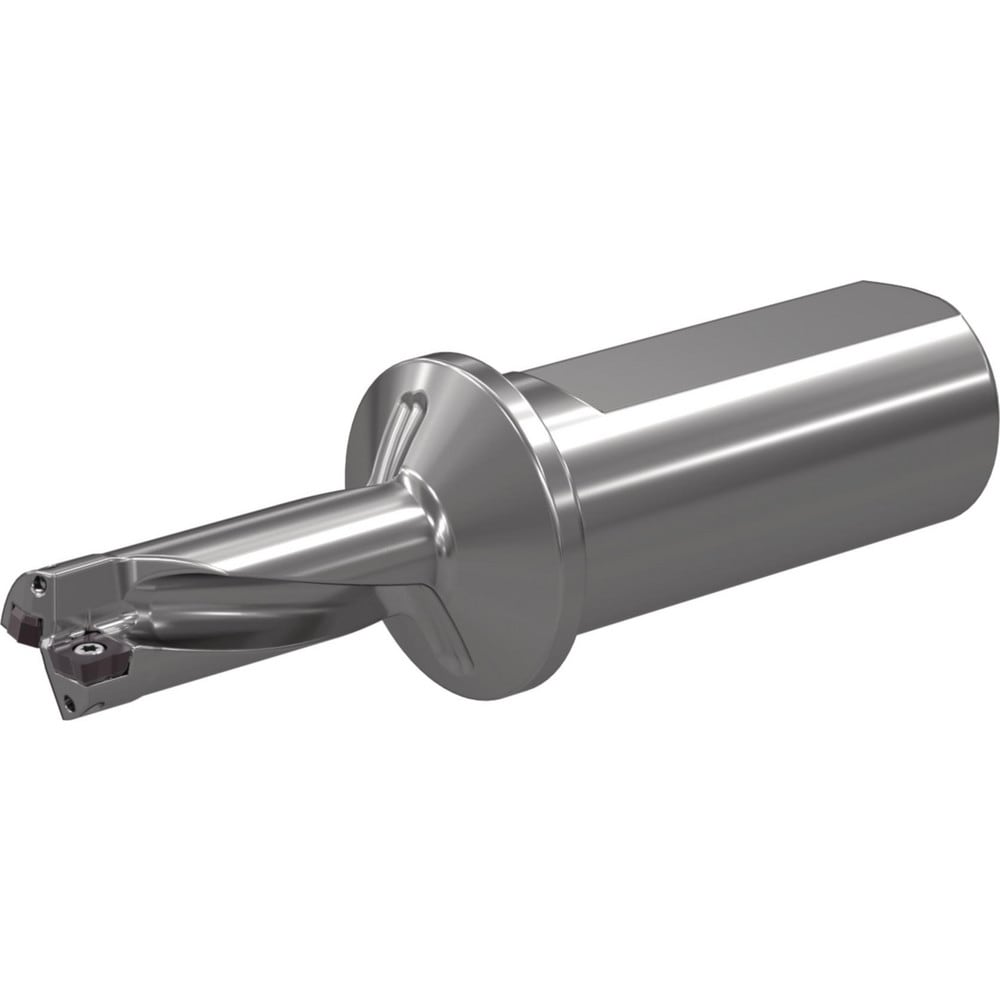

Brand: Widia / Part #: 5578401

Brand: Widia / Part #: 5578401


Item #: 90312158
Brand: Widia
Model #: 5578401

Product Specifications

Maximum Drill Depth 1.6550 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (Decimal Inch) 1.6550
Shank Type Weldon Flat
Shank Diameter (Inch) 1
Shank Diameter (Decimal Inch) 1.0000
Cutting Direction Right Hand
Drill Body Length to Flange (Decimal Inch) 2.6780
Toolholder Style TCF
Nose Diameter (Decimal Inch - 4 Decimals) 0.8130
Overall Length (Decimal Inch) 4.9119
Overall Length 4.91
Through Coolant Yes
Series Top Cut 4
Flute Length (Decimal Inch) 2.5490
Shank Length (Decimal Inch) 2.2047
Gage Length (Decimal Inch) 2.7071
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Coolant Hole Thread Type NPT
Coolant Hole Thread Size (Inch) 1/4-18
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (Decimal Inch) 0.8130
Number Of Flutes 2
Projection (Decimal Inch) 2.7071
Coolant Through Yes
$357.31
