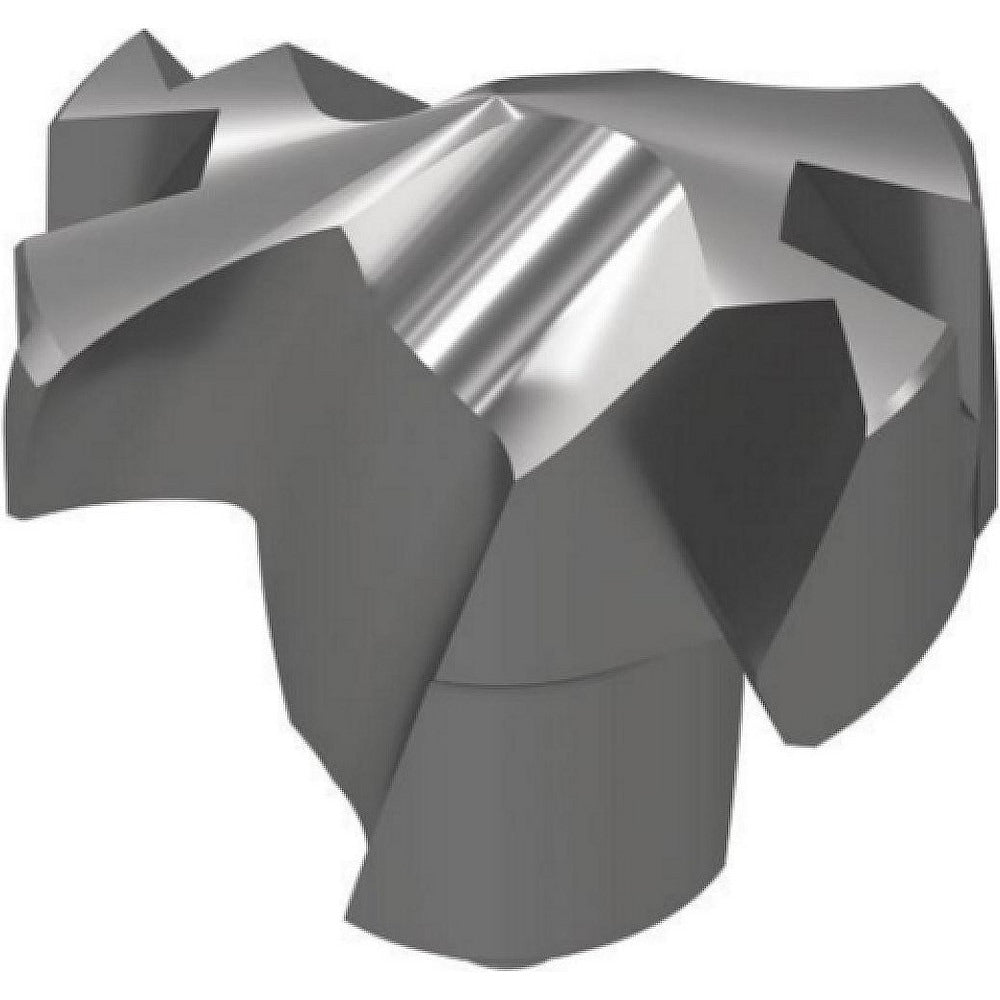

Brand: Widia / Part #: 4003203

Brand: Widia / Part #: 4003203


Item #: 10285674
Brand: Widia
Model #: 4003203

Product Specifications

Maximum Drill Diameter (Decimal Inch) 0.8440
Diameter (Decimal Inch) 0.8440
Point Angle 140.00
Diameter (Inch) 27/32
Tip Material Solid Carbide
Manufacturer Grade WU25PD
Material Grade Submicron
Cutting Direction Right Hand
Series Top Drill M1
Coating Process PVD
Insert Geometry UPM
Insert Seat Size W30
Primary Workpiece Material Cast Iron; Steel
Primary Workpiece Material Code P; K
Height (mm) 22.8300
Minimum Cutting Diameter (Decimal Inch) 0.8440
Drill Point Angle 140
Insert Holding Method Spring Clamp
Minimum Cutting Diameter (Inch) 27/32
ISO Number TDM2144UPM
Coolant Through No
Cutting Diameter (Decimal Inch) 0.8440
Cutting Diameter (Inch) 27/32
Coating Classification PVD
Applications Drilling
Coating/Finish TiAlN
Included Angle Degree 140
Number Of Flutes 2
$119.89
