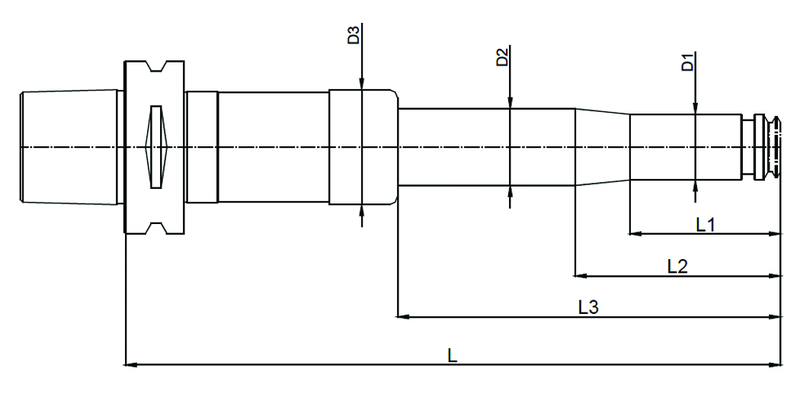

![C5 x ER32 x 100 H CAPTO Collet Holder - Exact Industrial Supply](http://exactindustrialsupply.com/cdn/shop/products/888673230_e6c2e0ac-8f02-4a5c-ade6-1da4c2f9fd97_1024x1024.png?v=1583235241)
C5 x ER32 x 100 H CAPTO Collet Holder
Item #: GM20480513250
Manufacturer: Rego-Fix
Mfg #: 4805.1325
Technical Specifications:
*Brand Name: Rego-Fix *Collet Style: ER32 *Gage Length: 100mm *Head Length/Projection: 100mm *Mount: C5 *Nose Diameter: 1.97 *Nut Diameter: 1.97 *Spindle Interface: CAPTO C5 *Type: Capto Toolholder *Weight: 2.161 lbs *Wrench Number: 7111.32000
Description:
*Sandvik certified manufacturer *Case hardened for long lfie and wear resistances *pre-balanced to G2.5 @ 22,000 RPM's *Rings can be added and the assembly can be balanced to over 40,000 RPM's *T.I.R. from the collet cavity to the holder taper 0.0001" *Lot number for lot traceability *Precision threads for better clamping force and accuracy *Rego-Fix Hi-Q nut provided for added clamping force *Superior surface finish for better fit and accuracy
Shipping Info:
*Actual Weight - .2500
