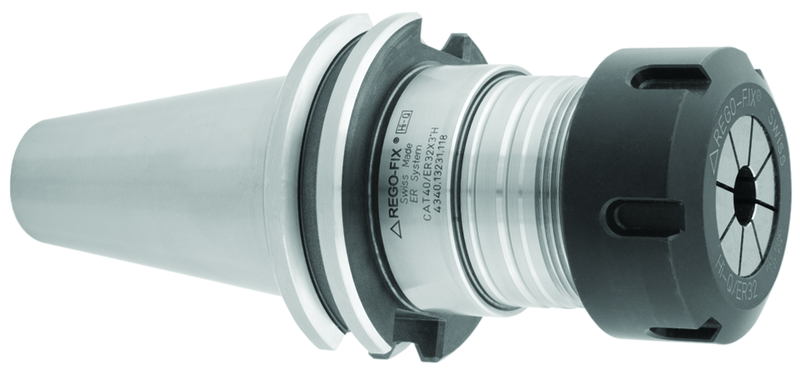

CAT+40 x ER20 x 6" H Collet Chuck
Item #: GM20434012076
Manufacturer: Rego-Fix
Mfg #: 4340.12076
Technical Specifications:
*Brand Name: Rego-Fix *Collet Style: ER20 *Description: CAT+40 / ER20 x 6" H *Head Length/Projection: 6.00 *Mount: CAT+40 *Nose Diameter: 1.66 *Type: Standard *Wrench Number: 7111.25000
Description:
*Case hardened to 58-62 HRc *Pre-balanced to G2.5 @ 22,000 RPM's *T.I.R. from the collet cavity to the holder taper 0.0001" or better *Lot Numbers for lot traceability *Through the spindle coolant or through the flange version available *BT & CAT+ have Hi-Q clamping nut included *AT3 or beter tapers guaranteed *Superior surface finish at 0.25Ra for better fit and accuracy *Swiss made to ISO 90001 *Big Plus System - Licensed by Big Daishowa
Shipping Info:
*Actual Weight - .2500
