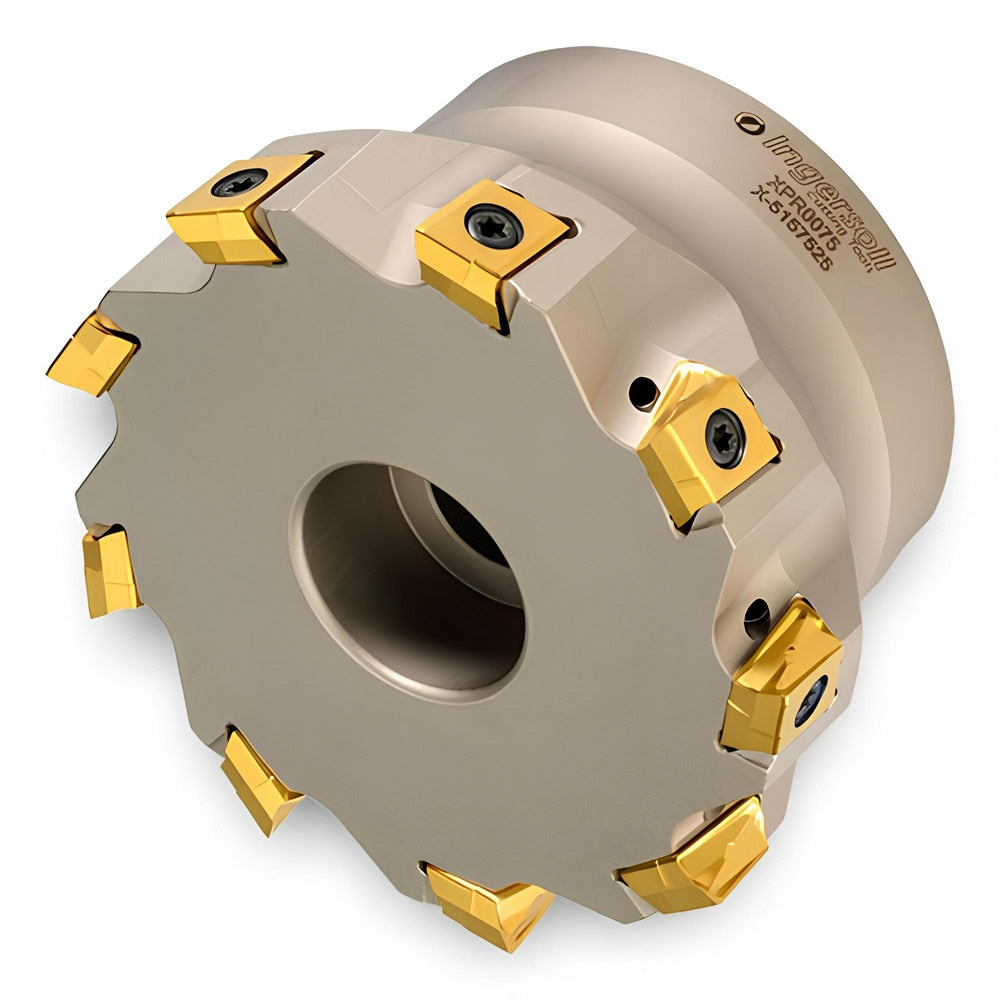

Brand: Ingersoll Cutting Tools / Part #: 2925986

Brand: Ingersoll Cutting Tools / Part #: 2925986


Item #: 96440417
Brand: Ingersoll Cutting Tools
Model #: 2925986

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 2.5000
Minimum Cutting Diameter (Inch) 2-1/2
Minimum Cutting Diameter (mm) 63.50
Maximum Cutting Diameter (Inch) 2-1/2
Maximum Cutting Diameter (Decimal Inch) 2.5000
Maximum Depth of Cut (Decimal Inch) 0.4790
Arbor Hole Diameter (Inch) 1
Arbor Hole Diameter (Decimal Inch) 1.0000
Compatible Insert Size Code 324
Maximum Ramping Angle 0.8
Cutter Style EJ5D
Cutting Direction Right Hand
Insert Holding Method Screw
Lead Angle 90 deg
Rake Negative
Series EJ5D
Overall Height (Decimal Inch) 1.5700
Keyway Width (Inch) 3/8
Keyway Width (Decimal Inch) 0.3750
Pitch Type Normal
Tool Application Facing; Helical Interpolation; Ramping; Shouldering
Tool Performance General Purpose
Primary Workpiece Material Universal
Primary Workpiece Material Code O
Cutting Edge Length (Decimal Inch) 0.4790
Complete Insert Compatibility CGM324R0?
Toolholder Material Steel
Manufacturers Catalog Number EJ5D-02R03
Coolant Through Yes
Number Of Cutter Inserts 6
Number Of Flutes 9
$630.63
