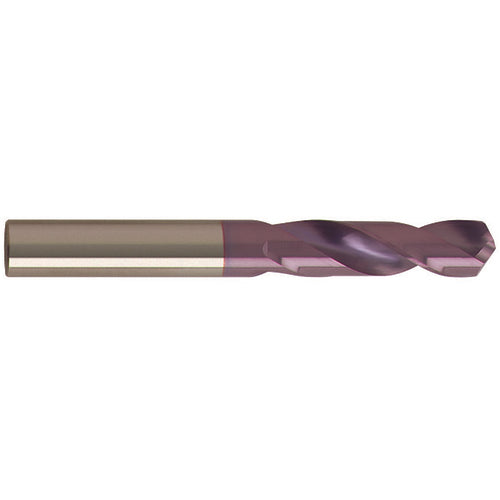

3/64″ Dia. × 3/64″ Shank × 8 mm Flute Length × 30 mm OAL, 3xD, 118°, nano-FIREX, 2 Flute, External Coolant, Round Solid Carbide Drill
Item #: GD1124630011900
Brand: Guhring
Model #: 9024630011900
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3/64″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/64″ |
| Tool Type | Carbide Drill |
| Decimal Equivalent | 0.0469″ |
| Measurement Type | Inch |
| Length Group | 3xD |
| Series/List # | 2463 |
| Coating | nano-FIREX |
| Usable Length (LU) | 6.22 mm |
| Connection Diameter Machine Side (DCONMS) | 3/64″ |
| Length Chip Flute (LCF) | 8 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 30 mm |
| Point Angle (SIG) | 118 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shape | Screw Machine |
| Body Material | Carbide |
