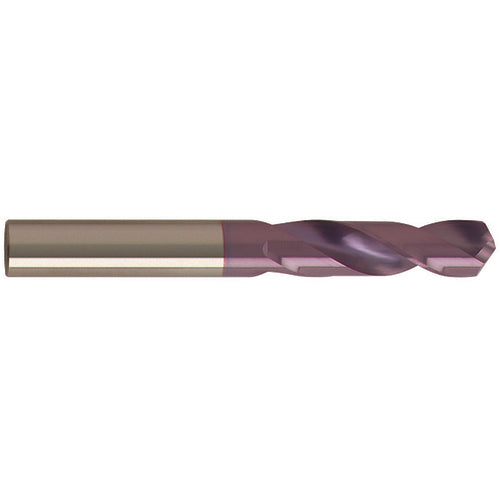

#60 Dia. x #60 Shank × 6 mm Flute Length × 26 mm OAL, 3xD, 118°, nano-FIREX, 2 Flute, External Coolant, Round Solid Carbide Drill
Item #: GD1124630010200
Brand: Guhring
Model #: 9024630010200
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #60 |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.04″ |
| Tool Type | Carbide Drill |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #60 |
| Measurement Type | Wire Gauge |
| Length Group | 3xD |
| Series/List # | 2463 |
| Coating | nano-FIREX |
| Usable Length (LU) | 4.47 mm |
| Connection Diameter Machine Side (DCONMS) | #60 |
| Length Chip Flute (LCF) | 6 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 26 mm |
| Point Angle (SIG) | 118 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shape | Screw Machine |
| Body Material | Carbide |
