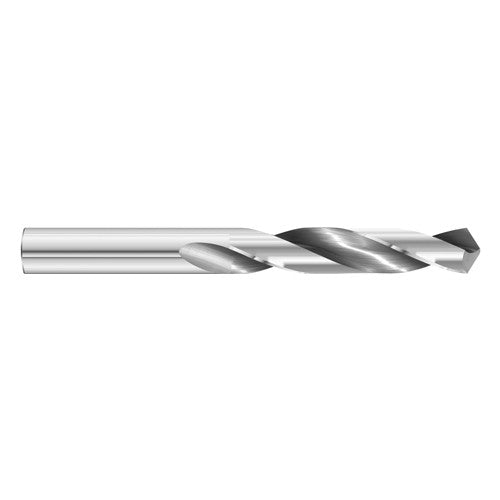

#64 Dia. × 0.036″ Shank × 5/8″ Flute Length × 1-1/2″ OAL, 7xD, 118°, Uncoated, 2xD Flute, External Coolant, Round Solid Carbide Drill
Item #: FT8215019
Brand: Fullerton Tool
Model #: 15019
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #64 |
| Shank Type | Round |
| Decimal Equivalent | 0.036″ |
| Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #64 |
| Cutting Edge Material | Carbide |
| Length Group | 7xD |
| Tool Type | Drill |
| Coating | Uncoated |
| Point Shape | 4 Facet |
| Connection Diameter Machine Side (DCONMS) | 0.036″ |
| Measurement Type | Wire Gauge |
| Coolant Supply Property (CSP) | External |
| Series/List # | 1510 |
| Point Angle (SIG) | 118 Degrees |
| Length Chip Flute (LCF) | 5/8″ |
| Flute Helix Angle (FHA) | 25 Degrees |
| Overall Length (OAL) | 1-1/2″ |
