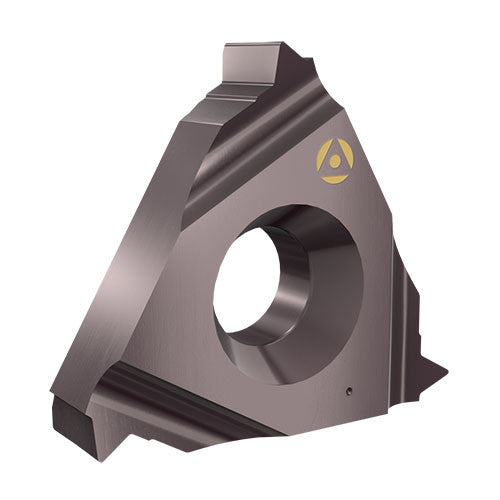

27IR 530 AC22A
Item #: FG33009460
Brand: Tool-Flo
Model #: 2418933
| Product Specifications | |
|---|---|
| Thread Standard | API |
| Insert Style | Laydown (LT) |
| Inscribed Circle Diameter (IC) | 5/8″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 1.08″ |
| Shape | 60° Triangle |
| Threads per Inch (TPI) | 5 Threads/" |
| Threads per Inch Minimum (TPIN) | 5 Threads/" |
| Grade | AC22A AlTiN |
| Threads per Inch Maximum (TPIX) | 5 Threads/" |
| Coating | TiAlN |
| Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Application | | Int Threading Laydown | |
| Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
