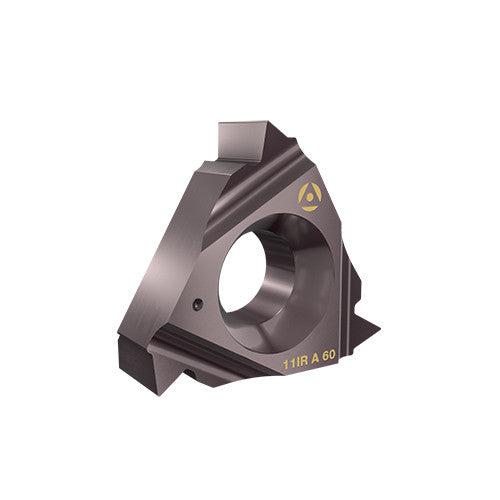

11IR A60 C22
Item #: FG322468414
Brand: Tool-Flo
Model #: 2468414
| Product Specifications | |
|---|---|
| Thread Standard | THFT |
| Shape | Triangle |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Threads per Inch Minimum (TPIN) | 16 Threads/" |
| Insert Length (INSL) | 0.433″ |
| Threads per Inch Maximum (TPIX) | 48 Threads/" |
| Corner Radius (RE) | 0.002″ |
| Thread Pitch Minimum (TPN) | 0.5 mm |
| Grade | C22 Uncoated |
| Thread Pitch Maximum (TPX) | 1.5 mm |
| Coating | Uncoated |
| Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Cutting Position | INT |
| Body Material | Carbide |
| Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | |
| Number of Teeth | 1 |
| Applicable Material | | Stainless Steel | Non Ferrous Metals | Hi Temp Alloys | |
| Cutting Edge Length (L) | 0.433″ |
| Cutting Direction (HAND) | Right Hand |
| Thread Form Type (THFT) | VP60 |
| Chip Breaker Type | Z |
