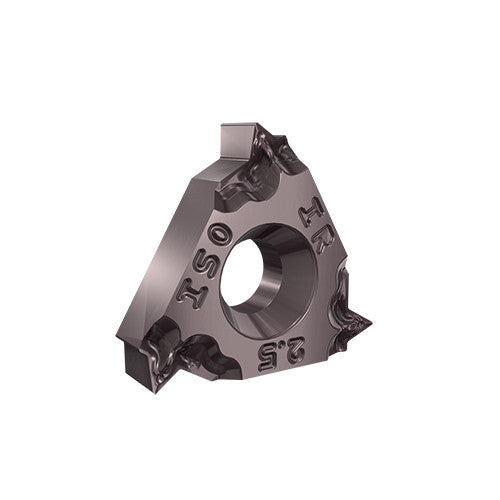

11IR 1.50ISO TC22A
Item #: FG322450665
Brand: Tool-Flo
Model #: 2450665
| Product Specifications | |
|---|---|
| Thread Standard | ISO (METRIC) |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Hi Temp Alloys | |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Insert Style | Laydown (LT) |
| Insert Length (INSL) | 10.92 mm |
| Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 1.5 mm |
| Chip Breaker Type | Z |
| Corner Radius (RE) | 0.12 mm |
| Shape | 60° Triangle |
| Insert Thickness (S) | 3.23 mm |
| Cutting Item Count (CICT) | 1 |
| Grade | TC22A AlTiN |
| Tool Type | Threading Regular Inserts |
| Coating | TiAlN+AlTiN+TiN |
| Measurement Type | Metric |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Application | | Int Threading Laydown | |
