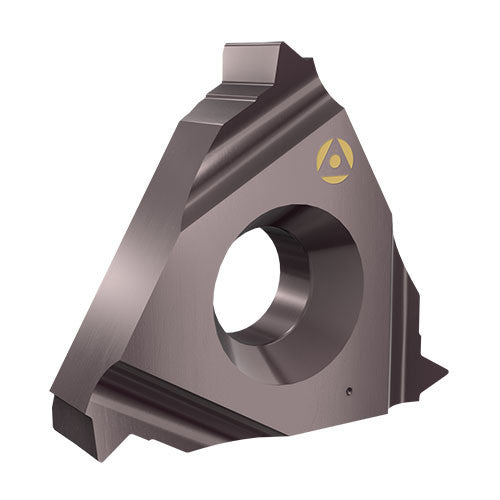

22IR 428 AC22A

22IR 428 AC22A


Item #: FG31008070
Brand: Tool-Flo
Model #: 2413690

Product Specifications
Thread Standard API
Insert Style Laydown (LT)
Inscribed Circle Diameter (IC) 1/2″
Cutting Direction (HAND) Right Hand
Insert Length (INSL) 0.87″
Shape 60° Triangle
Threads per Inch (TPI) 4 Threads/"
Threads per Inch Minimum (TPIN) 4 Threads/"
Grade AC22A AlTiN
Threads per Inch Maximum (TPIX) 4 Threads/"
Coating TiAlN
Tool Type Threading Regular Inserts
Cutting Edge Material Carbide
Measurement Type Inch
Application | Int Threading Laydown |
Body Material Carbide
Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys |
$398.09
