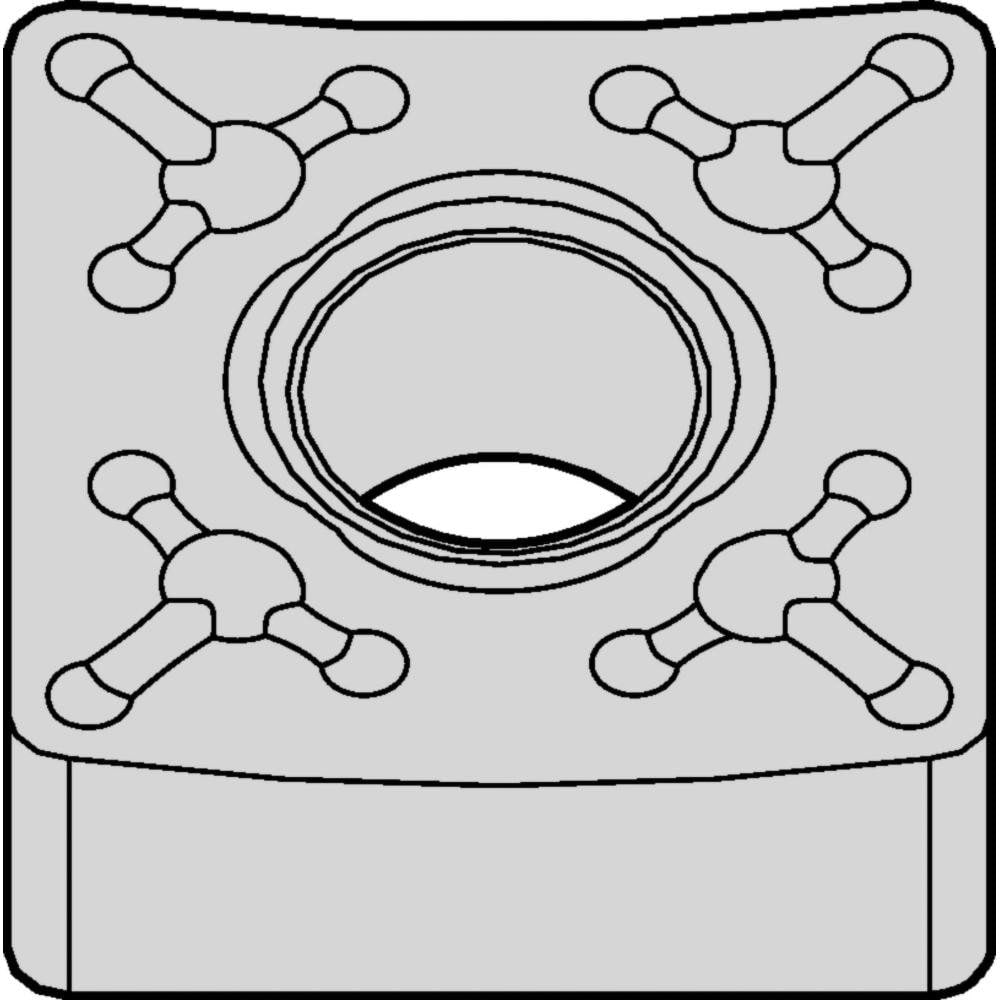

Brand: Widia / Part #: 5696556

Brand: Widia / Part #: 5696556


Item #: 94027901
Brand: Widia
Model #: 5696556

Product Specifications

Insert Style SNMM
Insert Shape Code S
Insert Size Code 433
Insert Shape Square
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WM25CT
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.2500
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 90.00
Relief Angle 0.000
Series SNMM
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.5000
Number Of Cutting Edges 4
Primary Workpiece Material Stainless Steel
Primary Workpiece Material Code M
Secondary Workpiece Material Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S
Ansi Code SNMM43365
Iso Code SNMM12041265
Manufacturers Catalog Number SNMM43365
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 65
Style SNMM
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$12.42
