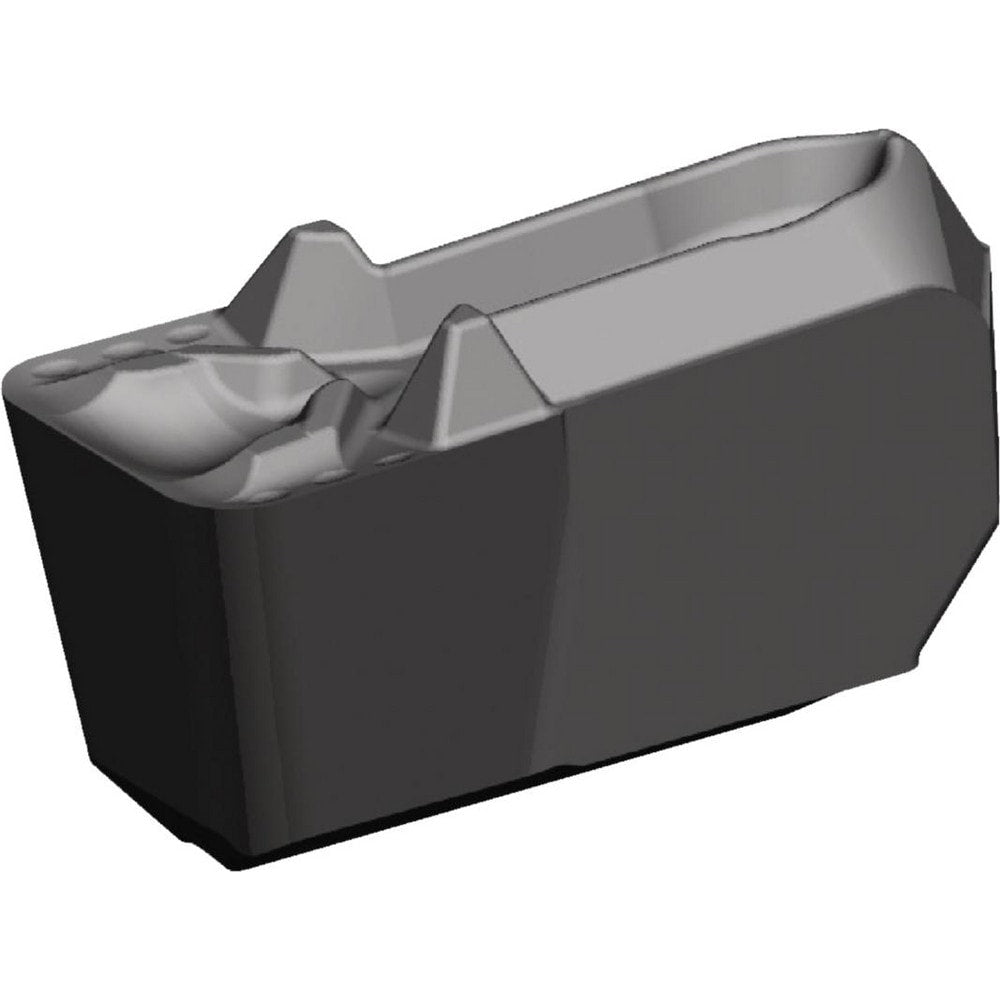

Brand: Widia / Part #: 6470489

Brand: Widia / Part #: 6470489


Item #: 94447711
Brand: Widia
Model #: 6470489

Product Specifications

Insert Style WGC
Insert Size Code 4
Insert Size 4
Insert Material Carbide
Manufacturer Grade WU25PT
Cutting Width (Decimal Inch) 0.1920
Cutting Width (mm) 4.880
Maximum Depth of Cut (Decimal Inch) 0.0945
Maximum Depth of Cut (Inch) 3/32
Maximum Depth of Cut (mm) 2.40
Insert Holding Method Clamp
Cutting Height (Inch) 3/32
Insert Hand Neutral
Corner Radius (mm) 0.78
Corner Radius (Decimal Inch) 0.0307
Corner Radius (Inch) 1/32
Lead Angle 10.500
Rake Positive
Multi-use Tool No
Cutting Tool Application Grooving
Series WGC
Coating Process PVD
Overall Length (Decimal Inch) 0.4010
Overall Length (mm) 10.1900
Primary Workpiece Material Super-alloys & Titanium
Primary Workpiece Material Code S
Secondary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Ansi Code WG192I04U2PT
Iso Code WG192I04U2PT
Relief Angle 10.5
Maximum Corner Radius (Decimal Inch) 0.0307
Manufacturers Catalog Number WG192I04U2PT
Overall Width (Inch) 9/64
Insert Thickness (Decimal Inch) 0.1740
Minimum Groove Width (mm) 4.88
Type WGC Groove And Turn Insert
Maximum Groove Width (mm) 4.88
Minimum Insert Width (mm) 3.58
Chip Breaker PT
Insert Seat Size 4
Style WGC Groove And Turn Insert
Insert Height (Decimal Inch) 0.1740
Full Radius No
Coating Classification PVD
Hole Diameter (Decimal Inch) 0.0000
Overall Width 3.5800
Overall Width (Decimal Inch - 4 Decimals) 0.1410
Coating/Finish TiAIN
Number Of Cutting Edges 1
Single Or Double End Single
Groove Width (mm) 4.88
For Use With Grooving
Insert Thickness 4.43
Hole Diameter (Mm) ( - 0 Decimals) 0.0000
$12.42
