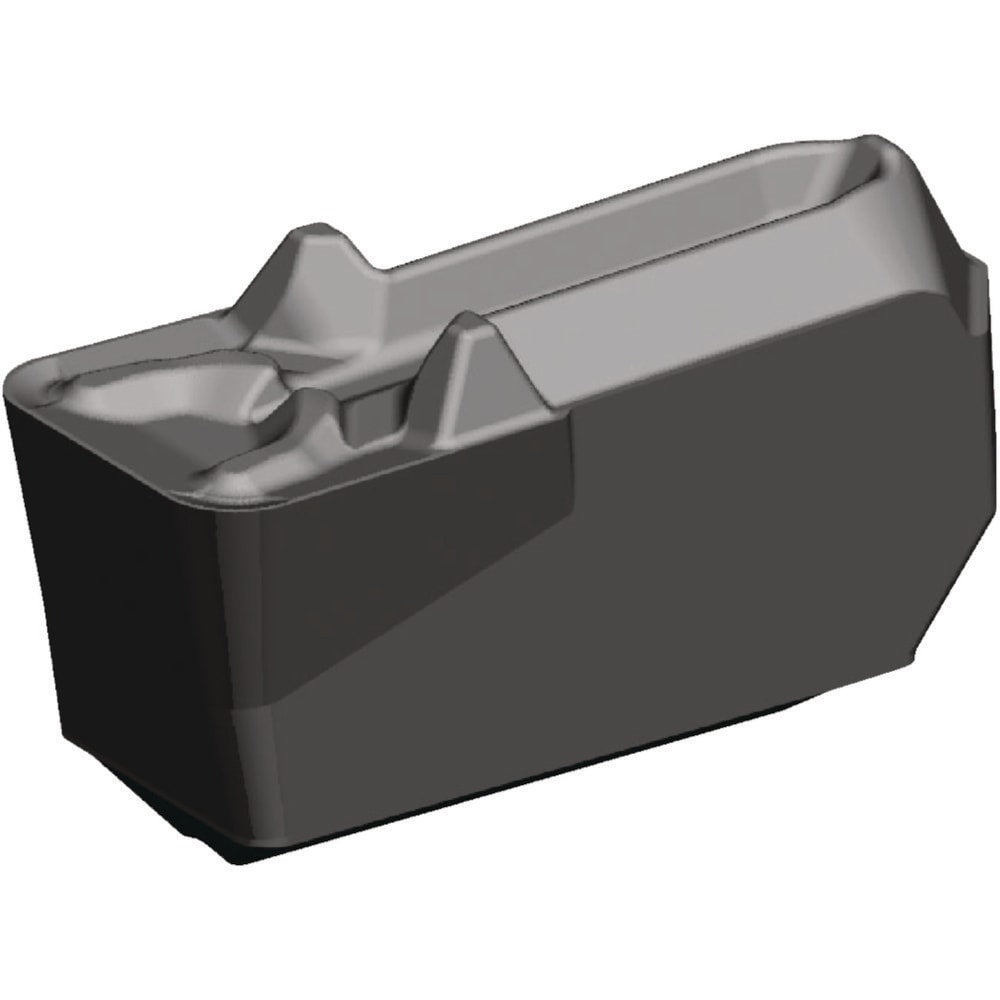

Brand: Widia / Part #: 6470838

Brand: Widia / Part #: 6470838


Item #: 94418597
Brand: Widia
Model #: 6470838

Product Specifications

Insert Style WGC
Insert Size Code 4
Insert Size 4
Insert Material Carbide
Manufacturer Grade WU25PT
Cutting Width (Decimal Inch) 0.1870
Cutting Width (mm) 4.750
Cutting Width (Inch) 3/16
Maximum Depth of Cut (Decimal Inch) 0.0945
Maximum Depth of Cut (Inch) 3/32
Maximum Depth of Cut (mm) 2.40
Insert Holding Method Clamp
Cutting Height (Inch) 3/32
Insert Hand Neutral
Corner Radius (mm) 0.80
Corner Radius (Decimal Inch) 0.0315
Corner Radius (Inch) 1/32
Lead Angle 10.500
Rake Positive
Multi-use Tool No
Cutting Tool Application Grooving
Series WGC
Coating Process PVD
Overall Length (Decimal Inch) 0.4010
Overall Length (mm) 10.2000
Primary Workpiece Material Super-alloys & Titanium
Primary Workpiece Material Code S
Secondary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Ansi Code WG187I04U2PN
Iso Code WG187I04U2PN
Relief Angle 10.5
Maximum Corner Radius (Decimal Inch) 0.0315
Manufacturers Catalog Number WG187I04U2PN
Overall Width (Inch) 9/64
Insert Thickness (Decimal Inch) 0.1745
Minimum Groove Width (mm) 4.75
Type WGC Groove And Turn Insert
Maximum Groove Width (mm) 4.75
Minimum Insert Width (mm) 3.58
Chip Breaker PN
Insert Seat Size 4
Style WGC Groove And Turn Insert
Insert Height (Decimal Inch) 0.1745
Full Radius No
Coating Classification PVD
Hole Diameter (Decimal Inch) 0.0000
Overall Width 3.5800
Overall Width (Decimal Inch - 4 Decimals) 0.1410
Coating/Finish TiAIN
Number Of Cutting Edges 1
Single Or Double End Single
Groove Width (mm) 4.75
For Use With Grooving
Insert Thickness 4.43
Hole Diameter (Mm) ( - 0 Decimals) 0.0000
$12.42
