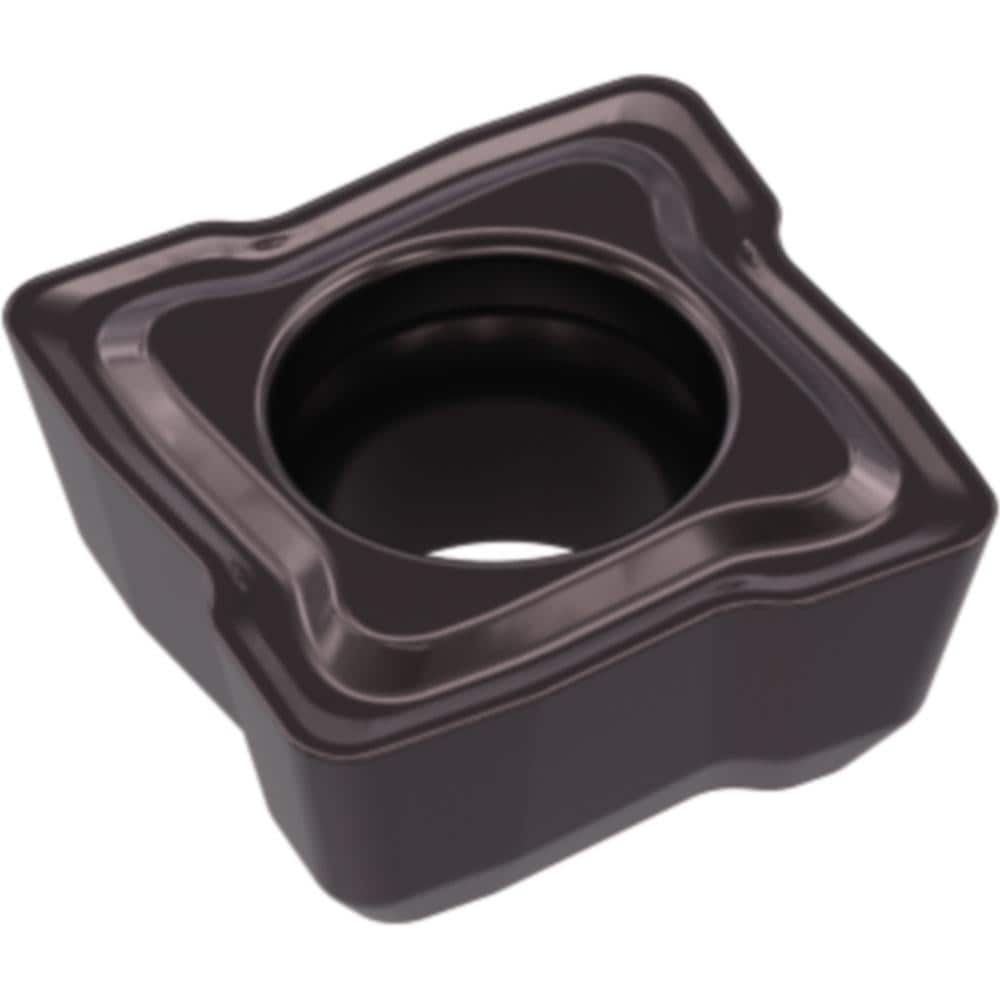

Brand: Widia / Part #: 5541844

Brand: Widia / Part #: 5541844


Item #: 31935646
Brand: Widia
Model #: 5541844

Product Specifications

Insert Style TCF
Insert Size Code 040204
Insert Material Carbide
Manufacturer Grade WU25CH
Inscribed Circle (Decimal Inch) 0.1628
Cutting Direction Neutral
Corner Radius (Inch) 1/64
Corner Radius (Decimal Inch) 0.0157
Chipbreaker V36
Series TCF
Coating Process CVD
Shape Irregular
Hole Diameter (Decimal Inch) 0.0827
Number Of Cutting Edges 4
Relief Angle 11.000
Rake Positive
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Stainless Steel
Secondary Workpiece Material Code M
Ansi Code TCF040204APV36
Iso Code TCF040204APV36
Drill Style TCF
Insert Size 04
Coating Classification CVD
Width (Decimal Inch - 4 Decimals) 0.1732
Length (Decimal Inch - 4 Decimals) 0.1732
Included Angle Degree 90
Thickness (Decimal Inch - 4 Decimals) 0.0787
Coating/Finish TiCN; Al2O3
$11.95
