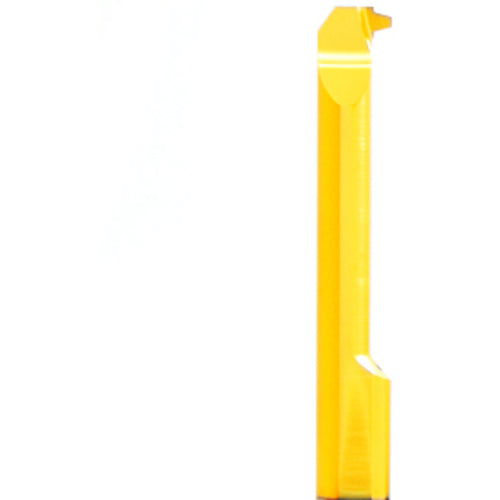

MIL 10 L45 4 TR BXC
Item #: FF5870400091
Brand: Carmex
Model #: 70400091
| Product Specifications | |
|---|---|
| Thread Pitch (TP) | 04.00mm |
| Overall Length (OAL) | 104.14 mm |
| Cutting Direction (HAND) | Left Hand |
| Minimum Bore Diameter (DMIN) | 11.43 mm |
| Cutting Edge Material | Carbide |
| Grade | BXC |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Thread Angle | 30 Degrees |
| Size | H10 |
| Applicable Material | Stainless Steel |
| Cutting Length | 44.96 mm |
| Coating | TiN |
| Thread Size | 16 × 4 | 18 × 4 | 20 × 4 |
| Measurement Type | Metric |
| Internal/External | Internal |
