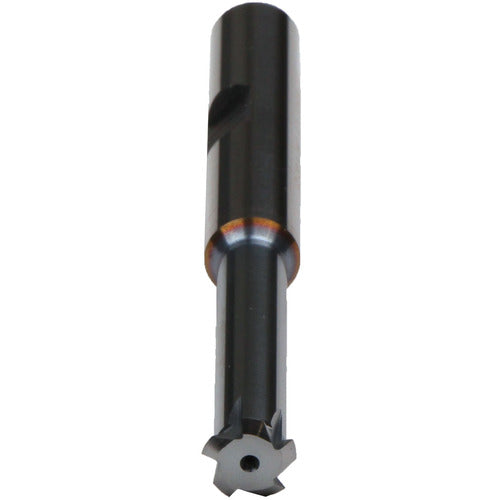

3/8-24 NF -ZGFI -3xD - Coolant Thread Mill
Item #: ER45GS831065045
Brand: EMUGE-FRANKEN
Model #: GFS83106.5045
| Product Specifications | |
|---|---|
| Thread Size | 3/8″ |
| Application | Tool for different thread sizes and pitches with correct thread profile |
| Threads per Inch (TPI) | 24 |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | 3/8″ |
| Helix Angle | 0 Degrees |
| Thread Standard | UNF |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Flute Type | Straight |
| Cutting Diameter (DC) | 0.323″ |
| Series/List # | A504524 |
| Overall Length (OAL) | 2.875″ |
| Length Group | 3xD |
| Flute Count (NOF) | 5 |
| Tool Type | Thread Mill |
| Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 1-1/8″ |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand | Left Hand |
| Coating | TiCN |
