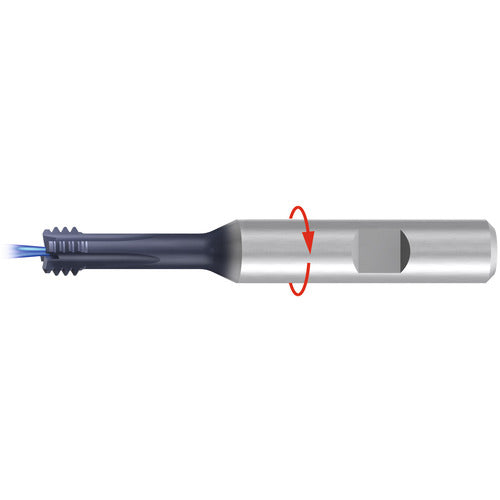

3/8-24 ZBGF-H-Style Thread Mill
Item #: ER45GF733208504
Brand: EMUGE-FRANKEN
Model #: GF733208.5045
| Product Specifications | |
|---|---|
| Thread Size | 3/8″ |
| Coating | AlTiN |
| Threads per Inch (TPI) | 24 |
| Applicable Material | Hard Materials |
| Thread Diameter Size (TDZ) | 3/8″ |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | UNF |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Flute Type | Straight |
| Cutting Diameter (DC) | 7.14 mm |
| Series/List # | A503344 |
| Overall Length (OAL) | 76 mm |
| Length Group | 2xD |
| Flute Count (NOF) | 4 |
| Tool Type | Thread Mill |
| Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 4.2 mm |
| Shank Type | HB |
| Cutting Direction (HAND) | Left Hand |
