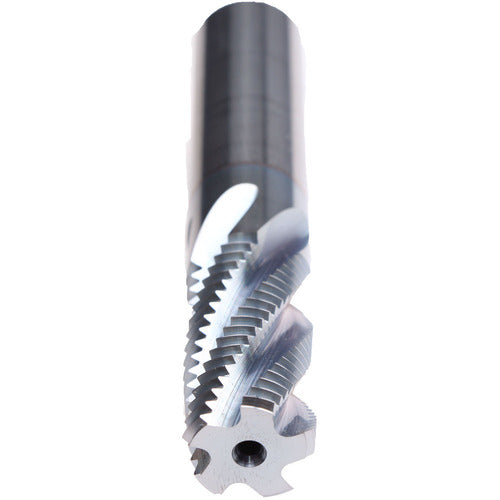

M27 min - 2.0 GF - Spiral Flute-Long - TICN Thread Mill
Item #: ER45G1623569516
Brand: EMUGE-FRANKEN
Model #: GF162356.9516
| Product Specifications | |
|---|---|
| Thread Size | M27 |
| Application | Tool for different thread sizes and pitches with correct thread profile |
| Thread Pitch (TP) | 2 mm |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | >=M27 |
| Helix Angle | 30 Degrees |
| Thread Standard | Metric |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Flute Type | Spiral |
| Cutting Diameter (DC) | 19.9 mm |
| Usable Length (LU) | 40.9 mm |
| Overall Length (OAL) | 115 mm |
| Series/List # | A214524 |
| Flute Count (NOF) | 5 |
| Length Group | Long |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand | Left Hand |
| Coating | TiCN |
