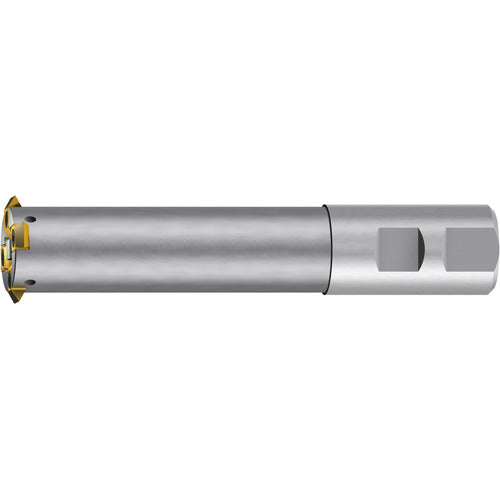

D20X60 SD-5/8 10 BODY-Z3
Item #: ER4517341
Brand: EMUGE-FRANKEN
Model #: GZ340050
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.807″ |
| Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Body Material | Steel |
| Depth of Cut Maximum (APMX) | 2.58″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 4.567″ |
| Series/List # | #10 |
| Flute Count (NOF) | 3 |
| Tool Type | 3 inserts needed |
| Usable Length (LU) | 2.757″ |
