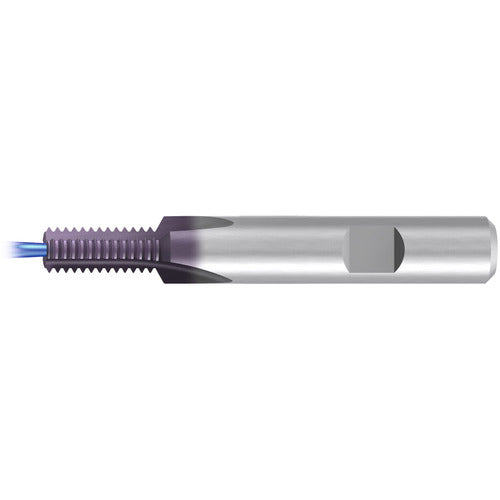

LK-M 8 BT-2XD GSF 3STFL
Item #: ER4516981
Brand: EMUGE-FRANKEN
Model #: GF333106.1054
| Product Specifications | |
|---|---|
| Thread Size | M8 |
| Coating | TiCN |
| Thread Pitch (TP) | 1.25 mm |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | M8 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | Metric |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Flute Type | Straight |
| Cutting Diameter (DC) | 6.5 mm |
| Usable Length (LU) | 16.7 mm |
| Overall Length (OAL) | 74 mm |
| Series/List # | A223344 |
| Flute Count (NOF) | 3 |
| Length Group | 2xD |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand | Left Hand |
