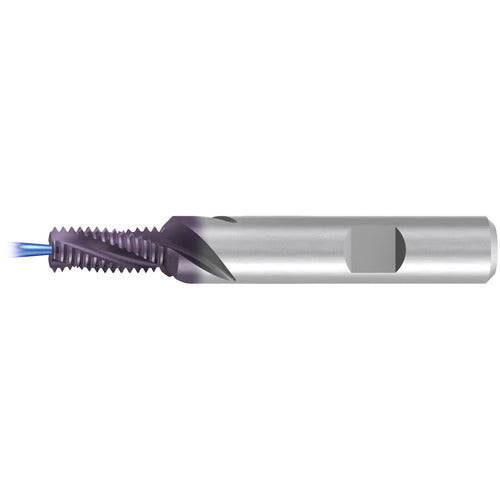

3/8-24 GSF Style Spiral Flute - TICN Thread Mill
Item #: ER4516969
Brand: EMUGE-FRANKEN
Model #: GF332106.5045
| Product Specifications | |
|---|---|
| Thread Size | 3/8″ |
| Coating | TiCN |
| Threads per Inch (TPI) | 24 |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | 3/8″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Thread Standard | UNF |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Flute Type | Spiral |
| Cutting Diameter (DC) | 8.2 mm |
| Usable Length (LU) | 19.6 mm |
| Overall Length (OAL) | 80 mm |
| Series/List # | A223344 |
| Flute Count (NOF) | 3 |
| Length Group | 2xD |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand | Left Hand |
