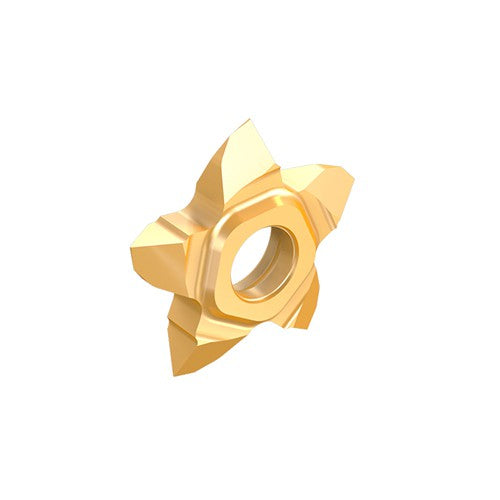

PENTA 17-MTR003RS IC1008
Item #: EH603347718
Brand: Iscar
Model #: 3347718
| Product Specifications | |
|---|---|
| Thread Standard | THFT | |
| Thread Pitch Minimum (TPN) | 0.3 mm |
| Corner Radius (RE) | 0.0012″ |
| Thread Pitch Maximum (TPX) | 1.5 mm |
| Grade | IC1008 |
| Threads per Inch Maximum (TPIX) | 80 Threads/" |
| Coating | TiAlN+TiN |
| Threads per Inch Minimum (TPIN) | 17 Threads/" |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
| Body Material | Carbide |
| Application | | Threading (Ext.) Groove Turn T | Threading Between Walls | Treading Inserts | |
| Thread Form Type (THFT) | VP60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
