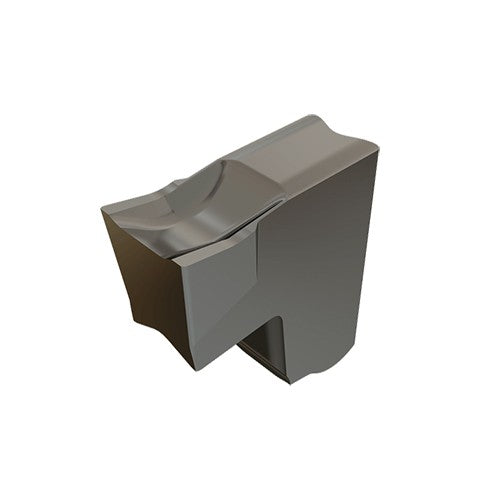

TAG N3A IC20
Item #: EH6003670
Brand: Iscar
Model #: 6003670
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.118″ |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Corner Radius (RE) | 0.0079″ |
| Max. Grooving Feed (fg(max)) | 0.0055 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0016″ |
| Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Cutting Edge Material | Carbide |
| Insert Rake Angle (GAN) | 10 Degrees |
| Coating | Uncoated |
| Chip Breaker Type | A |
| Grade | IC20 |
| Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral |
| Body Material | Carbide |
| Application | | Ext. Grooving | Groove Turn & Parting Inserts | Parting | Side Slotting | Slitting | |
