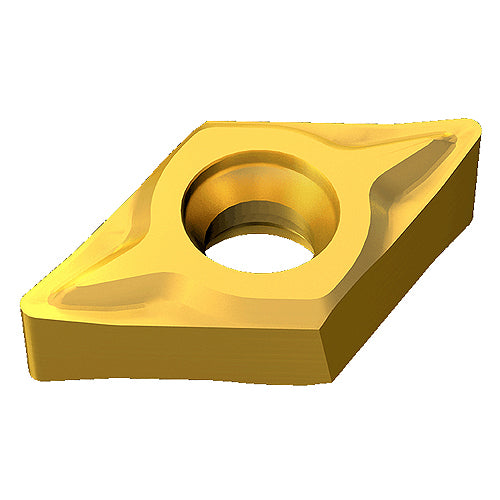

DNGP 220.5R-F2P IC530N
Item #: EH556723734
Brand: Iscar
Model #: 6723734
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Negative Inserts |
| Application | | Insert | Int. 55° Diamod 93° Back Appro | Int. 55° Diamond 100° Approach | |
| Min D.O.C. | 0.012″ |
| Insert Style | DNGP |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Corner Radius (RE) | 0.0079″ |
| Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Insert Size | 220.5 |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Cutting Edge Length (L) | 0.303″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ |
| Chip Breaker Type | F2P |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 55° Rhombic |
| Coating | TiCN+TiN |
| Body Material | Carbide |
| Grade | IC530N |
