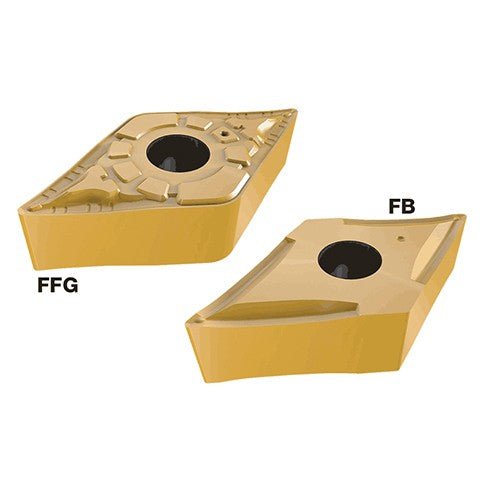

DNMG 332-FFC IC520N
Item #: EH556170093
Brand: Iscar
Model #: 6170093
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Grade | IC520N |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Insert | Int 55° Diamond 93 5° Approach | |
| Tool Type | Turn Negative Inserts |
| Insert Style | DNMG |
| Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 0.0315″ |
| Min D.O.C. | 0.039″ |
| Insert Size | 332 |
| Depth of Cut Maximum (APMX) | 0.138″ |
| Cutting Edge Length (L) | 0.458″ |
| Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 55° Rhombic |
| Coating | TiCN+TiN |
| Body Material | Carbide |
