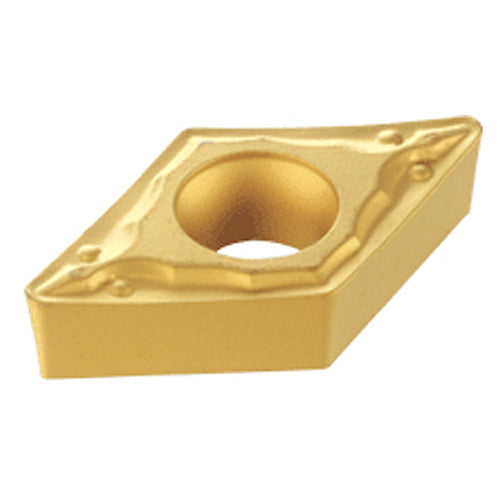

DCMT 2-.004-PF IC807
Item #: EH5550297
Brand: Iscar
Model #: 5550297
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Fixing Hole Diameter (D1) | 0.11″ |
| Application | | Ext. 55° Diamond 107.5° Appr. | Insert | Int 55° Diamond 93 5° Approach | |
| Min D.O.C. | 0.012″ |
| Insert Style | DCMT |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Corner Radius (RE) | 0.0039″ |
| Min. Turning Feed (ft(min)) | 0.0008 ″/rev |
| Insert Size | 2-.004 |
| Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Cutting Edge Length (L) | 0.303″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.094″ |
| Chip Breaker Type | PF |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 55° Rhombic |
| Coating | TiAlN+TiN |
| Series/List # | DCMT 2-.004-PF |
| Grade | IC807 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
