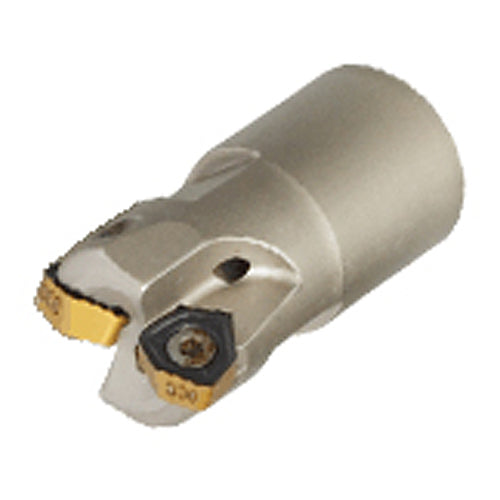

TS FF EWX D20-3-T12-04
Item #: EH3181023
Brand: Iscar
Model #: 3181023
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 20 mm |
| Tool Type | Fast Feed Endmill |
| Cutting Diameter (DC) | 12.6 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Cutting Diameter Maximum (DCX) | 20 mm |
| Drive Size (DRVS) | 15 mm |
| Cutting Item Count (CICT) | 3 |
| Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 0.8 mm |
| Body Diameter (BD) | 18.5 mm |
| Ramping Angle Maximum (RMPX) | 4.8 Degrees |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Rampdown | Side Plunging | |
| Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Master Insert Identification (MIID) | H600 WXCU 040310T |
| Cutting Direction (HAND) | Right Hand |
| Weight of Item (WT) | 0.06 Kg |
| Measurement Type | Metric |
| Functional Length (LF) | 40 mm |
| Body Material | Steel |
