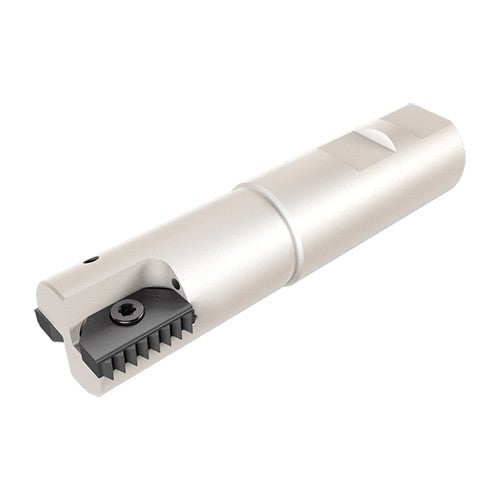

MTE D50-2-W40-40
Item #: EH313323557
Brand: Iscar
Model #: 3323557
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 50 mm |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Depth of Cut Maximum (APMX) | 40 mm |
| Application | | External Thread Milling | Internal Thread Milling | |
| Overall Length (OAL) | 153 mm |
| Tool Type | Indexable thread mills |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Usable Length (LU) | 78 mm |
| Connection Code Machine Side (CCMS) | Weldon |
| Shank Type | Weldon |
