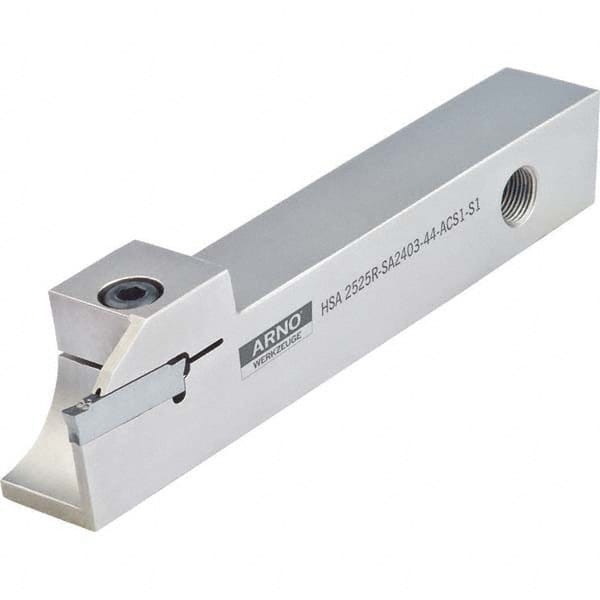

Arno - 0.866" Max Depth, 0.157 to 1.732" Width, External Left Hand Indexable Grooving/Cutoff Toolholder
Item #: 11429677
Brand: Arno
Model #: 501489
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 22.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8660 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Minimum Groove Width (mm) | 3.99 |
| Maximum Groove Width (Decimal Inch) | 1.7320 |
| Overall Length (Decimal Inch) | 6.6930 |
| Series | SA Parting / Grooving |
| Toolholder Style | HSA Monoblock |
| Insert Compatibility | SA 24-40 |
| Shank Height (Inch) | 1-1/4 |
| Shank Width/Diameter (Decimal Inch) | 0.9840 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Head Length (Decimal Inch) | 0.8660 |
| Manufacturers Catalog Number | HSA 3225L-SA2404-44-1.250 |
