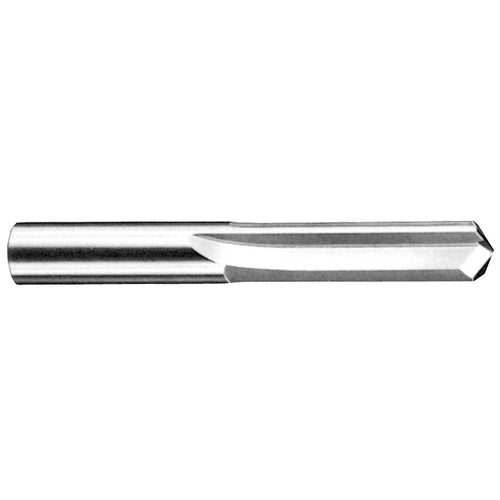

3 mm Dia. × 3 mm Shank × 16 mm Flute Length × 46 mm OAL, 3xD, 140°, TA, 2 Flute, External, Round Solid Carbide Drill
Item #: DD9166010
Brand: KYOCERA SGS Precision Tools
Model #: 66010
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3 mm |
| Tool Type | Drill |
| Decimal Equivalent | 0.1181″ |
| Length Below Shank | 30 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3 mm |
| Flute Type | Straight |
| Length Group | 3xD |
| Measurement Type | Metric |
| Coating | TA |
| Series/List # | 106 |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Usable Length (LU) | 12 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 16 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 46 mm |
| Flute Helix Angle (FHA) | 0 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
