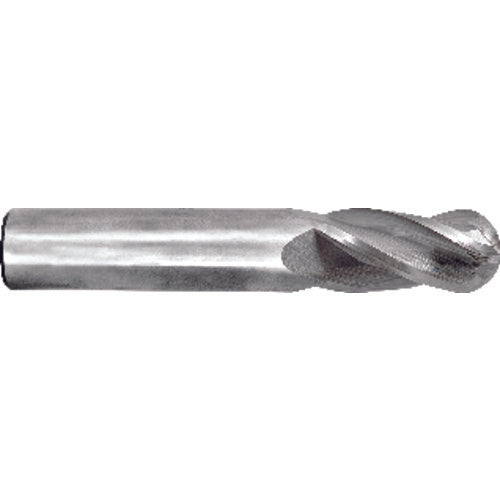

3/16″ Dia. × 3/16″ Shank × 5/8″ DOC × 2″ OAL, Carbide Uncoated, 4 Flute, Round, External , Ballnose End Mill
Item #: DD604012B
Brand: Rapidkut
Model #: DD604012B
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Usable Length (LU) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Corner Radius (RE) | 0.093″ |
| Depth of Cut Maximum (APMX) | 5/8″ |
| Tool Type | Single-End |
| Overall Length (OAL) | 2″ |
| End Shape | Ball Nose |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | Uncoated |
| Decimal Equivalent | 0.1875″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Shank Type | Round |
