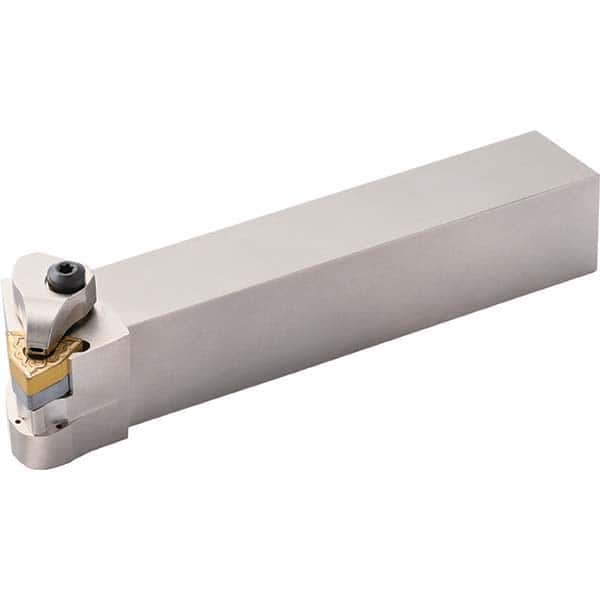

Kyocera - Indexable Turning Toolholders Hand of Holder: Right Hand Toolholder Style: DWLN
Item #: 16391047
Brand: Kyocera
Model #: 8863914
Product Specifications
Indexable Turning Toolholders; Hand of Holder: Right Hand ; Toolholder Style: DWLN ; Rake: Negative ; Rake Angle: -6 (Axial);-6 (Radial) ; Series: DWLN-JCT ; Lead Angle: 95
| Hand of Holder | Right Hand |
| Toolholder Style | DWLN |
| Rake | Negative |
| Rake Angle | -6 (Axial);-6 (Radial) |
| Series | DWLN-JCT |
| Lead Angle | 95 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (Decimal Inch) | 5.90550 |
| Insert Compatibility | WNMG43 , WNGG43 , WNMM43 , WNGA43 |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Facing |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 27.00 |
| Head Length (Decimal Inch) | 1.0630 |
| Insert Inscribed Circle (Inch) | 0.5000 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
| ISO Number | DWLNR2525M-08JCT |
| Through Coolant | Yes |
| Overall Length (mm) | 150.00 |
| Series | DWLN-JCT |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Hand | Right Hand |
| Overall Length (Decimal Inch) | 5.90550 |
