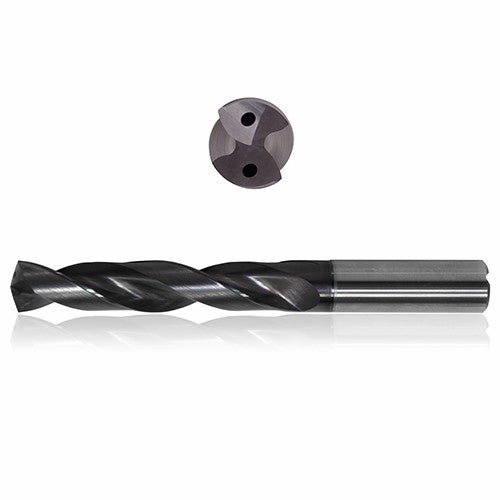

0.2008 mm Dia. × 6 mm Shank × 28 mm Flute Length × 66 mm OAL, 3xD, 140°, Sistral, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill
Item #: CW8110608
Brand: Precision Cutting Tools
Model #: 9549118
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.2008 mm |
| Shape | Round |
| Decimal Equivalent | 0.0079″ |
| Cutting Edge Material | Carbide |
| Length Group | 3xD |
| Tool Type | Solid Carbide Drill |
| Coating | Sistral |
| Flute Type | Helical |
| Applicable Material | Stainless Steel | Hard Materials |
| Grade | H5007 |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
| Series/List # | HXC |
| Point Angle (SIG) | 140 Degrees |
| Usable Length (LU) | 0.8012 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Length Chip Flute (LCF) | 28 mm |
| Number of Teeth | 2 |
| Overall Length (OAL) | 66 mm |
| Shank Length (LS) | 1.496 mm |
| Flute Count (NOF) | 2 |
| Shank Type | Cylindrical |
| Feature | SINGLE MARGIN DRILL, COOLANT THRU, HARD MATERIALS |
| Shank Standard | h6 |
| Cutting Direction (HAND) | Right Hand |
