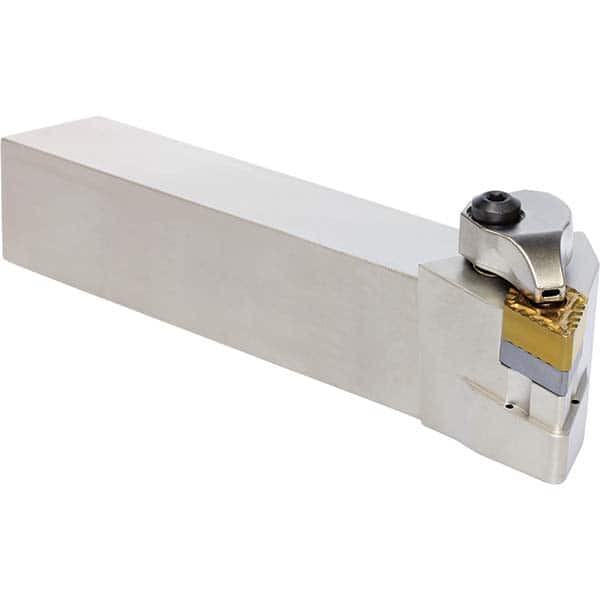

Kyocera - Indexable Turning Toolholders Hand of Holder: Left Hand Toolholder Style: DDJN
Item #: 16390643
Brand: Kyocera
Model #: 8863842
Product Specifications
Indexable Turning Toolholders; Hand of Holder: Left Hand ; Toolholder Style: DDJN ; Rake: Negative ; Rake Angle: -6 (Axial);-7 (Radial) ; Series: DDJN-JCT ; Lead Angle: 93
| Hand of Holder | Left Hand |
| Toolholder Style | DDJN |
| Rake | Negative |
| Rake Angle | -6 (Axial);-7 (Radial) |
| Series | DDJN-JCT |
| Lead Angle | 93 |
| Shank Width (mm) | 19.05 |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 4.50000 |
| Insert Compatibility | DNMG43 , DNMX43 , DNGG43 , DNGA43 , DNMM43 |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Copying |
| Back of Bar to Cutting Edge (mm) | 25.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Length (mm) | 36.98 |
| Head Length (Decimal Inch) | 1.4560 |
| Insert Inscribed Circle (Inch) | 0.5000 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
| ISO Number | DDJNL12-4BJCT |
| Through Coolant | Yes |
| Overall Length (mm) | 114.30 |
| Series | DDJN-JCT |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Hand | Left Hand |
| Overall Length (Decimal Inch) | 4.50000 |
