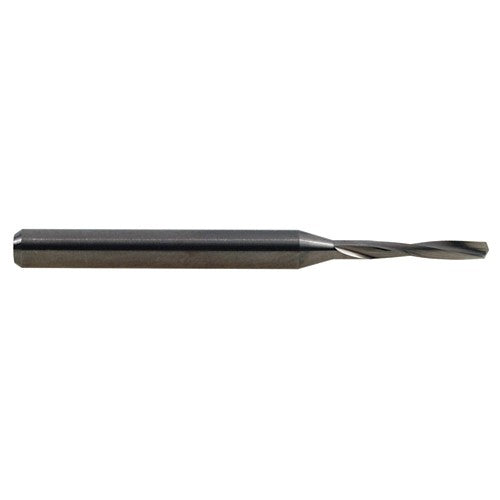

1 mm Dia. × 3 mm Shank × 10.2 mm Flute Length × 38 mm OAL, 10xD, 135°, ALtima Micro, 2 Flute, External, Round Solid Carbide Drill
Item #: AX4134220
Brand: M A Ford
Model #: 305M0100AM
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1 mm |
| Shape | Solid Carbide |
| Decimal Equivalent | 0.0394″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1 mm |
| Tool Type | Carbide Drill |
| Length Group | 10xD |
| Measurement Type | Metric |
| Coating | ALtima Micro |
| Usable Length (LU) | 10.16 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Length Chip Flute (LCF) | 10.2 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 38 mm |
| Point Angle (SIG) | 135 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 12 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
