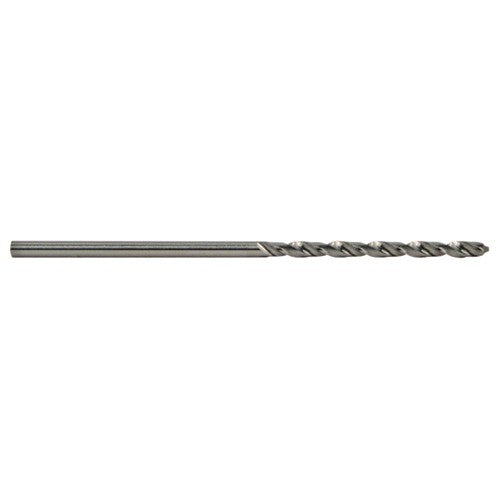

3 mm Dia. × 3 mm Shank × 16 mm Flute Length × 38 mm OAL, 5xD, 118°, Uncoated, 2 Flute, External, Round Solid Carbide Drill
Item #: AX4130417
Brand: M A Ford
Model #: 30011810
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3 mm |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1181″ |
| Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3 mm |
| Measurement Type | Metric |
| Length Group | 5xD |
| Series/List # | 300 |
| Coating | Uncoated |
| Usable Length (LU) | 16 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Length Chip Flute (LCF) | 16 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 38 mm |
| Point Angle (SIG) | 118 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 35 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
