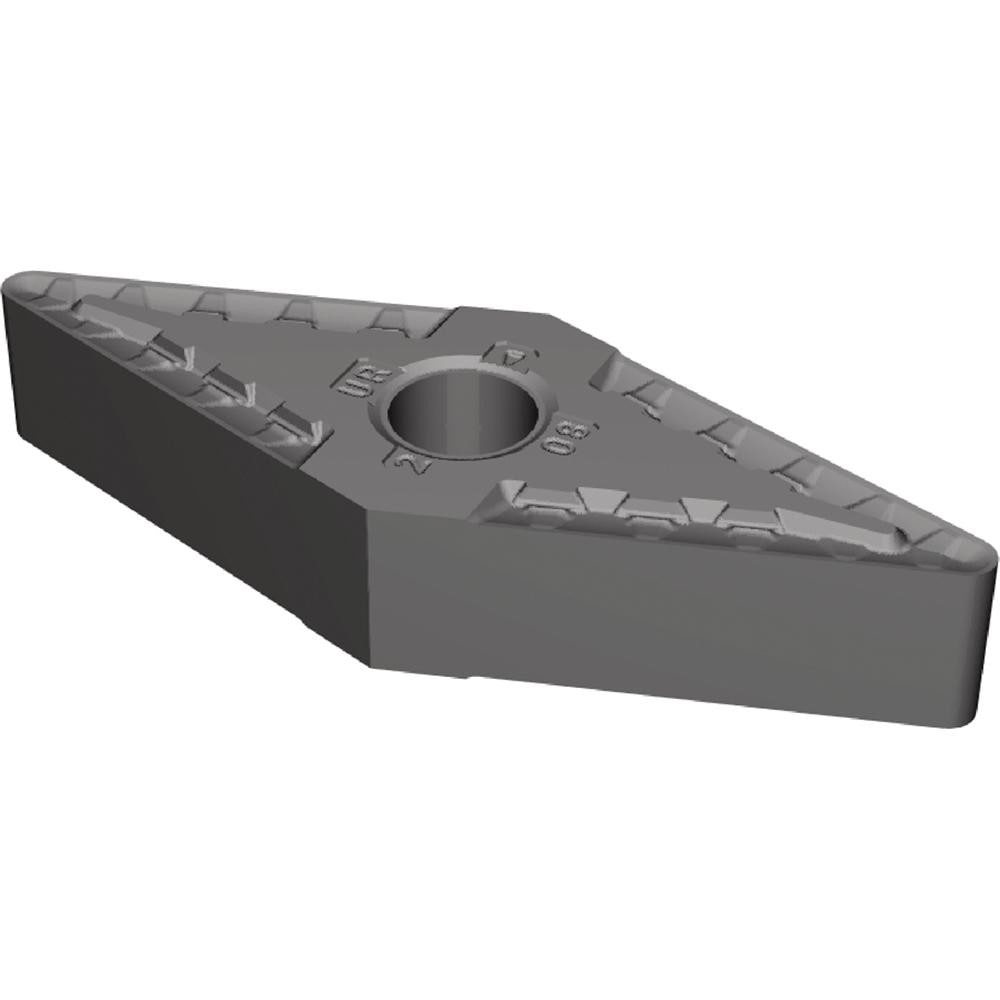

Brand: Widia / Part #: 6942350

Brand: Widia / Part #: 6942350


Item #: 93324192
Brand: Widia
Model #: 6942350

Product Specifications

Insert Style VNMG
Insert Shape Code V
Insert Size Code 333
Insert Shape Diamond
Coating/Finish AlTiN
Manufacturer Grade WU10PT
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1500
Maximum Depth of Cut (Decimal Inch) 0.3269
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 35.00
Relief Angle 0.000
Series VNMG
Coating Process PVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6538
Number Of Cutting Edges 4
Primary Workpiece Material Stainless Steel; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; M
Ansi Code VNMG333UR
Iso Code VNMG160412UR
Manufacturers Catalog Number VNMG333UR
Cutting Direction Neutral
Coating Classification PVD
Chip Breaker UR
Style VNMG
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$8.21
