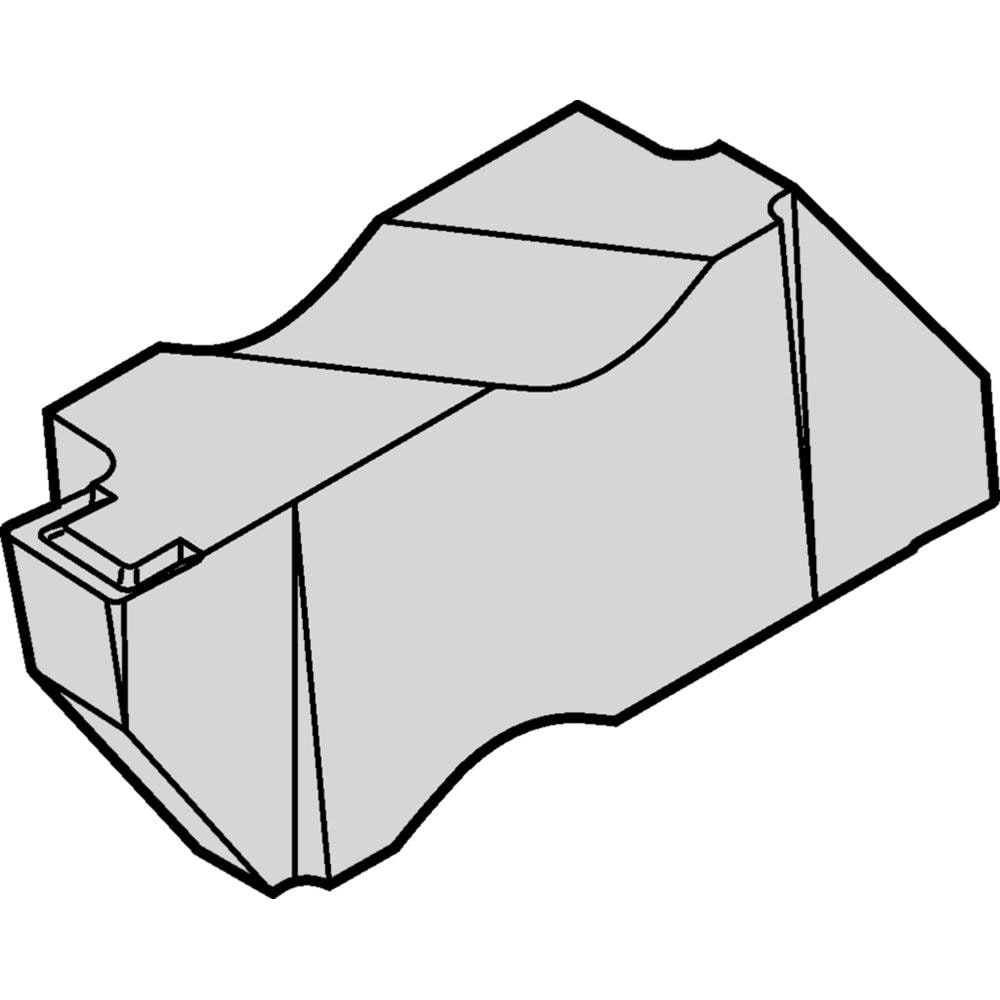

![Brand: Widia / Part #: 3607376](http://exactindustrialsupply.com/cdn/shop/files/9777749-21_2b912ba2-8b01-4dae-ac1f-d04239456a12_1024x1024.jpg?v=1698342770)
Brand: Widia / Part #: 3607376
Item #: 17908666
Brand: Widia
Model #: 3607376
Product Specifications
Insert Style | NG-K |
Insert Size Code | 2 |
Insert Size | 2 |
Insert Material | Carbide |
Manufacturer Grade | TN6025 |
Cutting Width (Decimal Inch) | 0.0469 |
Cutting Width (mm) | 1.190 |
Cutting Width (Inch) | 3/64 |
Maximum Depth of Cut (Decimal Inch) | 0.0500 |
Maximum Depth of Cut (mm) | 1.27 |
Insert Holding Method | Clamp |
Cutting Height (mm) | 1.27 |
Insert Hand | Left Hand |
Cutting Height (Decimal Inch) | 0.0500 |
Corner Radius (mm) | 0.09 |
Corner Radius (Decimal Inch) | 0.0035 |
Lead Angle | 11.000 |
Rake | Positive |
Multi-use Tool | Yes |
Cutting Tool Application | Grooving; Turning |
Series | NG-K |
Coating Process | PVD |
Rake Angle | 10.000 |
Overall Length (Decimal Inch) | 0.5110 |
Overall Length (mm) | 12.9700 |
Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
Primary Workpiece Material Code | P; S; K; N |
Secondary Workpiece Material | Non-Ferrous Metal |
Secondary Workpiece Material Code | N |
Ansi Code | NG2047LK |
Iso Code | NG2047LK |
Relief Angle | 11 |
Maximum Corner Radius (Decimal Inch) | 0.0035 |
Minimum Corner Radius (Decimal Inch) | 0.0050 |
Manufacturers Catalog Number | NG2047LK |
Insert Thickness (Decimal Inch) | 0.2190 |
Minimum Groove Width (mm) | 1.19 |
Thickness (Inch) | 7/32 |
Type | Top Notch Grooving Insert |
Maximum Groove Width (mm) | 1.19 |
Minimum Insert Width (mm) | 3.84 |
Chip Breaker | K |
Insert Seat Size | 2 |
Style | Top Notch Grooving Insert |
Insert Height (Decimal Inch) | 0.2190 |
Full Radius | No |
Gage Diameter (Decimal Inch) | 0.1875 |
Coating Classification | PVD |
Hole Diameter (Decimal Inch) | 0.0000 |
Gage Diameter (Inch) | 3/16 |
Overall Width | 3.8400 |
Overall Width (Decimal Inch - 4 Decimals) | 0.1510 |
Coating/Finish | TiAlN |
Number Of Cutting Edges | 2 |
Single Or Double End | Single |
Groove Width (mm) | 1.19 |
For Use With | Grooving; Turning |
Insert Thickness | 5.56 |
Hole Diameter (Mm) ( - 0 Decimals) | 0.0000 |
