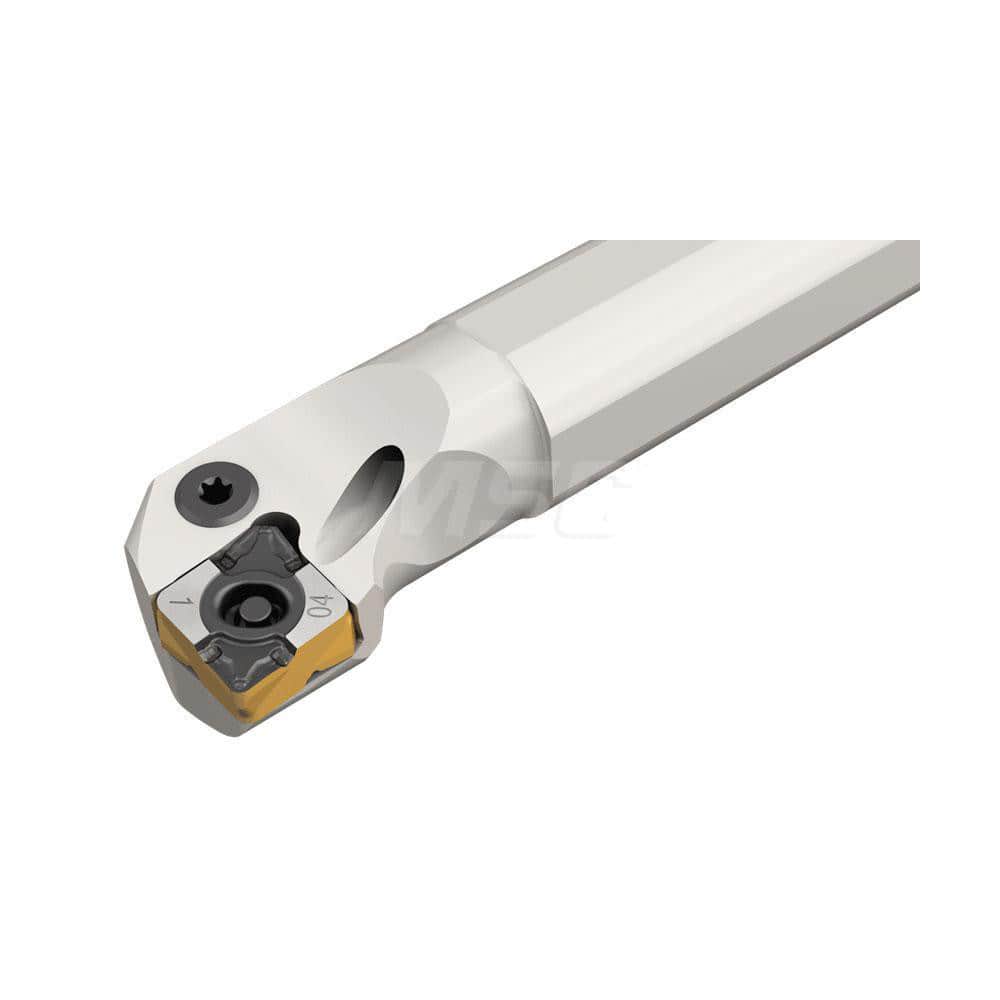

20mm Min Bore, Right Hand A16Q PCLXR Indexable Boring Bar 180mm OAL, 16mm Shank Diam, Uses CXMG, A16Q PCLXR Inserts, Through Coolant
Item #: 99686974
Brand: Iscar
Model #: 3345197
Product Specifications
Minimum Bore Diameter (mm) | 20.00 |
Minimum Bore Diameter (Decimal Inch) | 0.7870 |
Maximum Bore Depth (mm) | 30.00 |
Toolholder Style | A16Q PCLXL; A16Q PCLXR |
Insert Compatibility | CXMG |
Shank Diameter (Decimal Inch) | 0.6290 |
Shank Diameter (mm) | 16.00 |
Hand of Holder | Right Hand |
Overall Length (Decimal Inch) | 7.0860 |
Overall Length (mm) | 180.00 |
Compatible Insert Size Code | 09 |
Insert Holding Method | Lever |
Compatible Insert Shape | Diamond |
Rake | Positive (Radial); Positive (Axial) |
Cutting Direction | Right Hand |
Series | Isoturn |
Insert Inscribed Circle (mm) | 9.70 |
Compatible Insert Thickness (mm) | 4.65 |
Multi-use Tool | No |
Cutting Tool Application | Turning |
Center to Cutting Edge (mm) | 11.00 |
Standards | ISO 13399 |
Number of Inserts Used on Toolholder | 1 |
Maximum Bore Diameter (mm) | 64.00 |
Maximum Bore Diameter (Decimal Inch) | 2.5190 |
Number of Inserts Included in Order | 0 |
Coolant Through | Yes |
