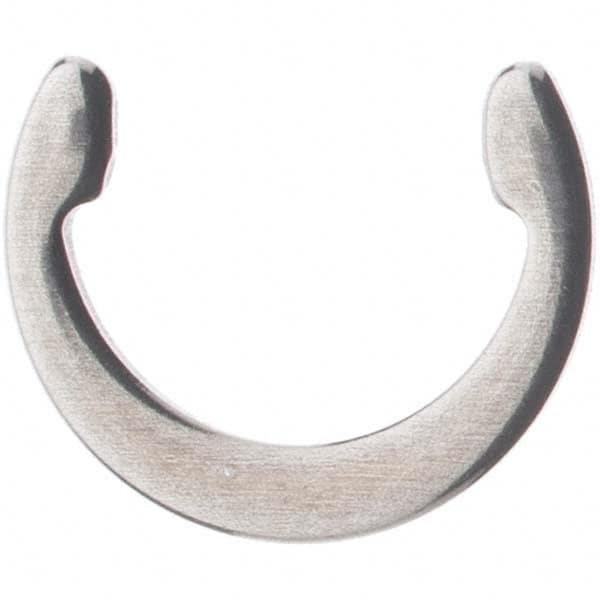

1-1/8″ Shaft Diam, 1.013″ Groove Diam, Stainless Steel External C Style Retaining Ring 1.267″ Free OD, 0.997″ Free ID, 0.056″ Groove Width x 0.056″ Groove Depth, 0.05″ Ring Thickness, Grade 15-7 Grade 632
Item #: 99622672
Brand: Rotor Clip
Model #: C-112SS
Product Specifications
| Ring Type | C Style |
| System of Measurement | Inch |
| Groove Diameter | 1.013 in |
| Groove Diameter Tolerance | -0.0040 to 0.0050 in |
| Shaft Diameter (Inch) | 1-1/8 |
| Free Diameter | 0.997 in |
| Free Outside Diameter | 1.267 in |
| Groove Diameter (Decimal Inch) | 1.0130 |
| Material | Stainless Steel |
| Free Outside Diameter (Decimal Inch) | 1.2670 |
| Free Diameter (Decimal Inch) | 0.9970 |
| Military Specification | Does Not Meet Military Specifications |
| Finish/Coating | Passivated |
| Groove Width Tolerance | 0.000 to 0.004 in |
| Groove Depth | 0.056 in |
| Ring Thickness Tolerance | -0.002 to 0.002 in |
| Material Grade | 15-7 Grade 632 |
| Groove Width (Decimal Inch) | 0.056 in |
| Groove Depth (Decimal Inch) | 0.0560 |
| Ring Thickness (Decimal Inch) | 0.05 in |
| Minimum Shaft Diameter (Decimal Inch) | 1.1250 |
| Maximum Shaft Diameter (Decimal Inch) | 1.1250 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Diameter Tolerance (Decimal Inch) | -0.008 to 0.008 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
